AD7622BCPZ - Analog Devices

Description: Analog Devices AD7622BCPZ, 16 bit Serial ADC, Differential Input, 48-Pin LFCSP VQ

Download AD7622BCPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

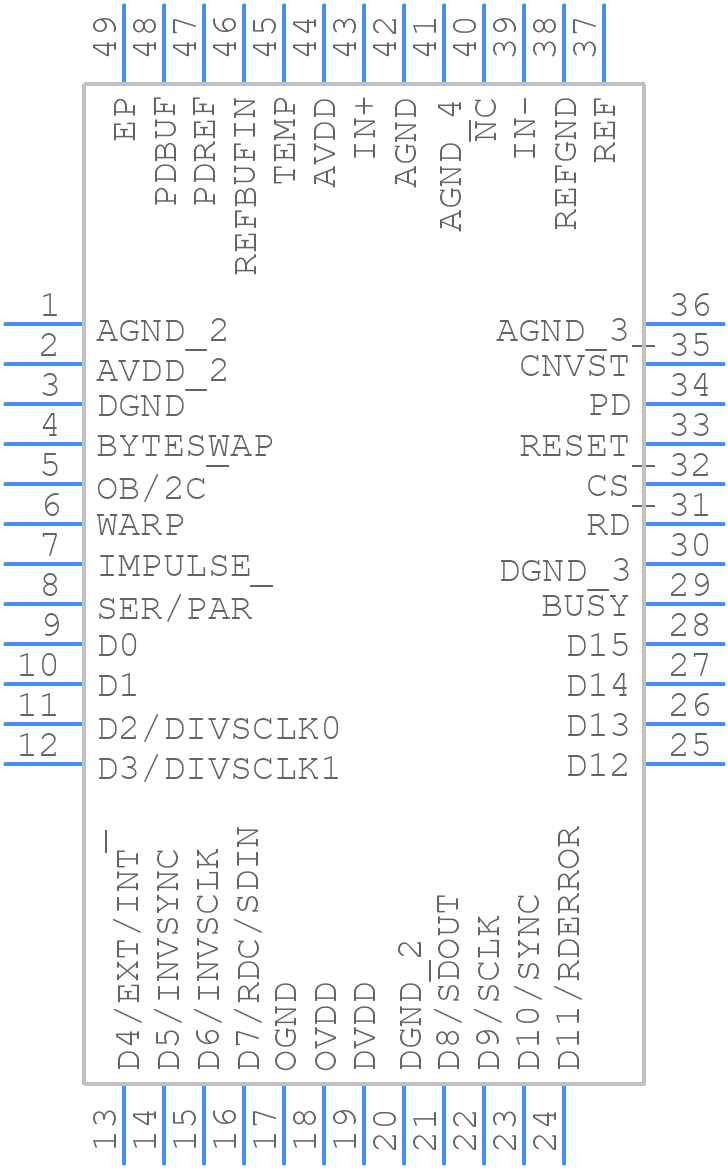

Symbol
AD7622BCPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7622BCPZ - Analog Devices PCB footprint - Other - Other - QFN50P700X700X100-49N
click to zoom
3D Models
AD7622BCPZ - Analog Devices - 3D model - Other - QFN50P700X700X100-49N
click to zoom

AD7622BCPZ Details

  • Manufacturer Part Number:

    AD7622BCPZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    7 X 7 MM, LEAD FREE, MO-220VKKD-2, LFCSP-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    CP-48-4

  • Country Of Origin:

    Singapore

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    2.5 V

  • Analog Input Voltage-Min:

    -2.5 V

  • Conversion Time-Max:

    0.485 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-XQCC-N48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Linearity Error-Max (EL):

    0.0023%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, 2'S COMPLEMENT BINARY

  • Output Format:

    PARALLEL, WORD

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.27SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    2 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

AD7622BCPZ Frequently Asked Questions (FAQs)

  • A good layout and routing practice for the AD7622BCPZ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog signal traces. It's also recommended to use a 4-layer PCB with a dedicated analog power plane and a dedicated digital power plane.
  • To optimize the performance of the AD7622BCPZ in a system with multiple ADCs, ensure that each ADC has its own dedicated analog power supply and analog ground plane. Also, use a common mode filter or a ferrite bead to reduce noise coupling between the ADCs.
  • The recommended calibration procedure for the AD7622BCPZ involves a full-scale calibration followed by a system calibration. The full-scale calibration involves applying a full-scale input voltage and adjusting the offset and gain to achieve the desired accuracy. The system calibration involves applying a known input voltage and adjusting the offset and gain to achieve the desired accuracy.
  • The digital output data from the AD7622BCPZ can be handled in a microcontroller or FPGA by using a serial peripheral interface (SPI) or a parallel interface. The microcontroller or FPGA can be programmed to read the digital output data from the AD7622BCPZ and perform the necessary processing and calculations.
  • The AD7622BCPZ has a maximum junction temperature of 150°C. To ensure reliable operation, it's recommended to keep the device temperature below 125°C. This can be achieved by using a heat sink, improving air flow, and reducing the power consumption of the device.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

AD7622BCPZ Overview

Use the download button to access the AD7622BCPZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD762, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
