AD7626BCPZ-RL7 - Analog Devices

Description: Differential ADC

Download AD7626BCPZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

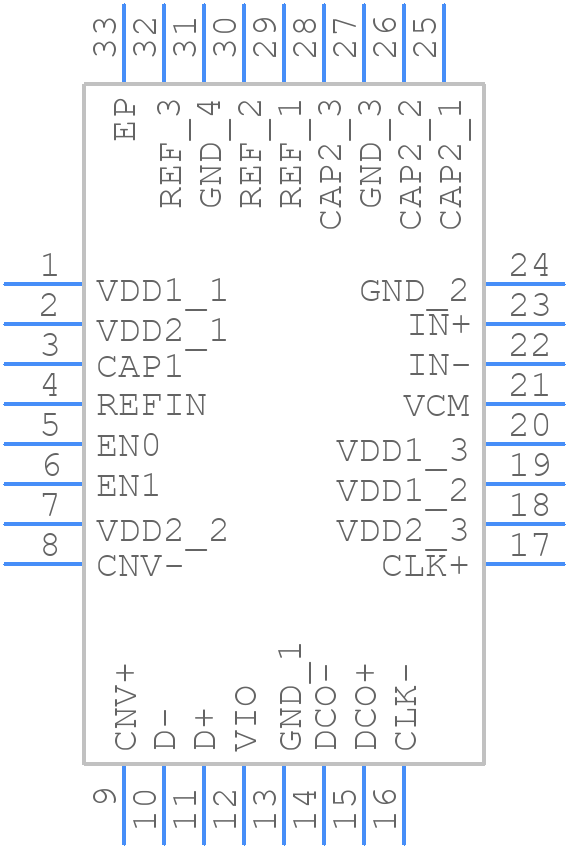

Symbol
AD7626BCPZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7626BCPZ-RL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - [LFCSP_WQ] (CP-32-7)
click to zoom
3D Models
AD7626BCPZ-RL7 - Analog Devices - 3D model - Quad Flat No-Lead - [LFCSP_WQ] (CP-32-7)
click to zoom

AD7626BCPZ-RL7 Details

  • Manufacturer Part Number:

    AD7626BCPZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    5 X 5 MM, ROHS COMPLIANT, MO-220VHHD-2, LFCSP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    CP-32-7

  • Country Of Origin:

    South Korea

  • ECCN Code:

    3A991.C.4

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    4.096 V

  • Analog Input Voltage-Min:

    -4.096 V

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.0023%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    10 MHz

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    21.2 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

AD7626BCPZ-RL7 Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the analog and digital signals separate. Additionally, use a low-ESR capacitor for the VDD pin and a 0.1uF capacitor for the AVDD pin. Refer to the ADI layout guidelines for more information.
  • The AD7626BCPZ-RL7 has an internal calibration circuit that can be enabled by setting the CAL pin high. The device will then perform a self-calibration sequence. Additionally, the user can perform an external calibration by applying a known input voltage and adjusting the offset and gain registers accordingly.
  • The recommended power-up sequence is to first apply the analog power supply (AVDD) followed by the digital power supply (DVDD). The digital power supply should be powered up after the analog power supply has reached its nominal voltage. This ensures that the internal analog circuits are properly biased before the digital circuits are enabled.
  • The AD7626BCPZ-RL7 outputs data in a 16-bit, 2's complement format. The user should ensure that their processing system can handle this format correctly. Additionally, the user should take into account the device's output data rate and ensure that their system can handle the data transfer rate.
  • The AD7626BCPZ-RL7 has a maximum junction temperature of 150°C. To ensure reliable operation, the user should ensure that the device is operated within the recommended temperature range and that the thermal dissipation is adequate. A thermal pad on the bottom of the package can be used to improve heat dissipation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7626BCPZ-RL7 Overview

Use the download button to access the AD7626BCPZ-RL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD762, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
