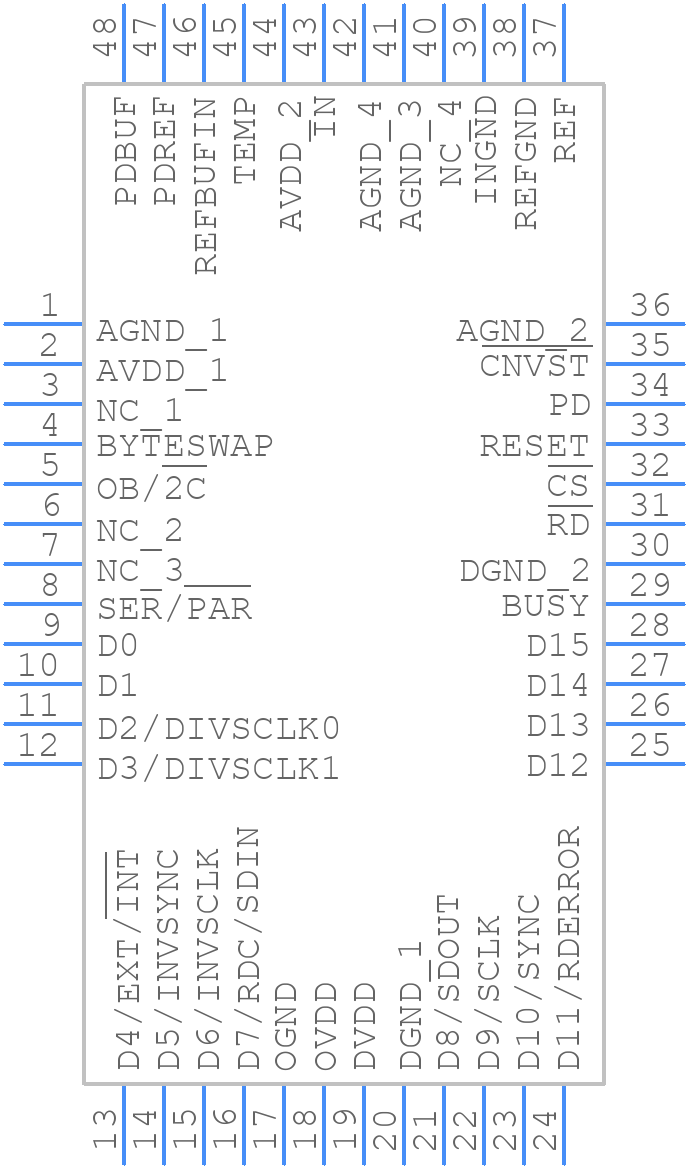

AD7651ASTZ - Analog Devices

AD7651ASTZ Frequently Asked Questions (FAQs)

• What is the recommended layout and routing for the AD7651ASTZ to minimize noise and ensure optimal performance?
  A good layout and routing practice for the AD7651ASTZ involves separating analog and digital signals, using a solid ground plane, and keeping the analog input traces short and shielded. It's also recommended to use a low-ESR capacitor for the AVDD and DVDD pins, and to decouple the REF pin with a 10nF capacitor.
• How do I properly configure the AD7651ASTZ for different gain settings and what are the implications of each gain setting?
  The AD7651ASTZ has a programmable gain amplifier (PGA) that can be configured for different gain settings using the GAIN bits in the control register. The gain settings range from 1 to 128, and each setting affects the input range and noise performance of the ADC. For example, a higher gain setting increases the sensitivity of the ADC but also increases the noise, while a lower gain setting reduces the sensitivity but improves the noise performance.
• What is the recommended clock frequency for the AD7651ASTZ and how does it affect the conversion rate and power consumption?
  The recommended clock frequency for the AD7651ASTZ is between 1MHz and 10MHz. The clock frequency affects the conversion rate, with higher clock frequencies resulting in faster conversion rates. However, higher clock frequencies also increase the power consumption of the ADC. A good compromise is to use a clock frequency of around 2MHz to 5MHz, which provides a reasonable conversion rate while keeping power consumption low.
• How do I handle overvoltage and undervoltage conditions on the analog input pins of the AD7651ASTZ?
  The AD7651ASTZ has internal overvoltage protection on the analog input pins, which can withstand voltages up to ±16.5V. However, it's still recommended to use external protection circuitry, such as voltage-limiting resistors or clamping diodes, to prevent damage to the ADC. For undervoltage conditions, the ADC has a built-in voltage reference that can be used to detect when the input voltage is below a certain threshold.
• What is the recommended method for synchronizing multiple AD7651ASTZ devices in a multi-channel application?
  To synchronize multiple AD7651ASTZ devices, you can use the SYNC pin to synchronize the conversion cycles of each device. The SYNC pin can be connected to a common clock source, and each device can be configured to start conversions on the rising edge of the SYNC signal. This ensures that all devices convert at the same time, allowing for simultaneous sampling of multiple channels.
