AD7652ACPZ - Analog Devices

Description: Analog Devices AD7652ACPZ, 16-Bit Serial ADC Pseudo Differential Input, 48-Pin LFCSP

Download AD7652ACPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

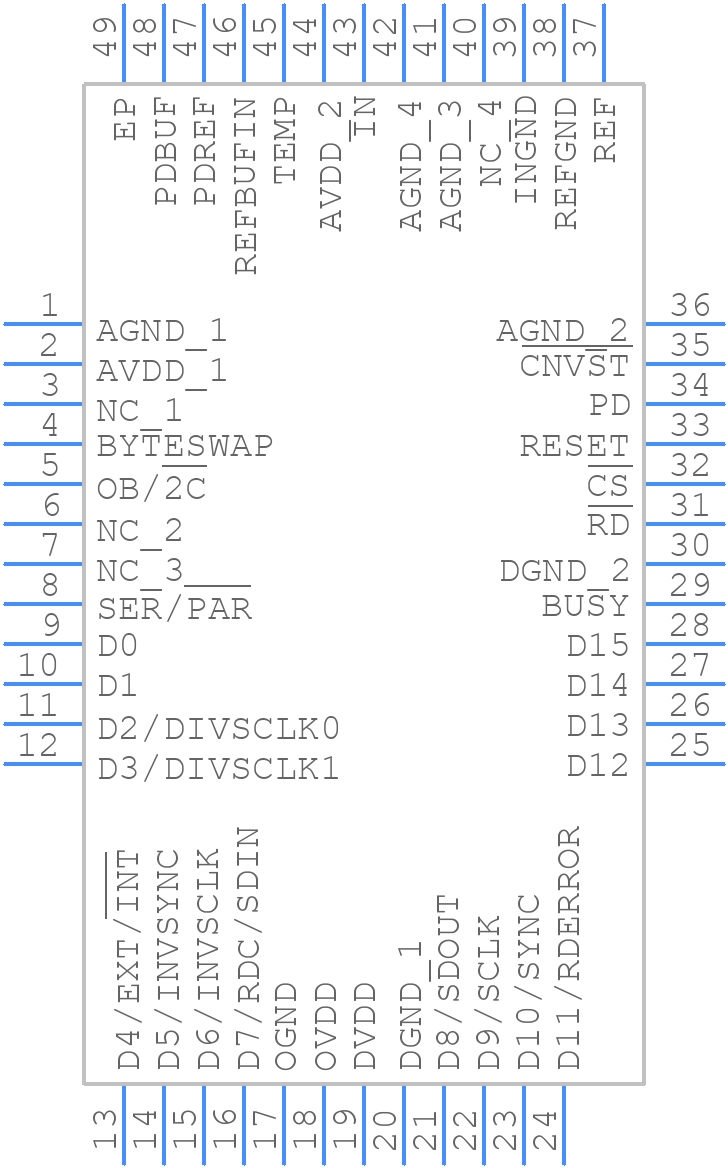

AD7652ACPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7652ACPZ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-48 (LFCSP)
click to zoom
3D Models
AD7652ACPZ - Analog Devices - 3D model - Quad Flat No-Lead - CP-48 (LFCSP)
click to zoom

AD7652ACPZ Details

  • Manufacturer Part Number:

    AD7652ACPZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFP

  • Package Description:

    LQFP, LFCSP-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    CP-48-1

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Analog Input Voltage-Max:

    2.5 V

  • Conversion Time-Max:

    1.25 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-XQCC-N48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Linearity Error-Max (EL):

    0.0092%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, 2'S COMPLEMENT BINARY

  • Output Format:

    SERIAL, PARALLEL, WORD

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VQCCN

  • Package Equivalence Code:

    LCC48,.27SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.5 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

AD7652ACPZ Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital signals separate, use a solid ground plane, and keep the analog input traces as short as possible. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog ground layer and a dedicated digital ground layer.
  • For differential input mode, connect the positive input signal to the AIN+ pin and the negative input signal to the AIN- pin. For pseudo-differential input mode, connect the input signal to the AIN+ pin and the reference voltage (e.g. GND or VREF) to the AIN- pin. Make sure to set the correct input mode using the MODE pin or through the SPI interface.
  • The maximum sampling rate of the AD7652ACPZ is 250 kSPS. However, the actual achievable sampling rate may be limited by the system's clock frequency, the conversion time, and the settling time of the analog input signal. Additionally, the sampling rate may also be affected by the SPI interface clock frequency and the number of bytes transferred per conversion.
  • The AD7652ACPZ has an internal overvoltage protection circuit that can handle up to ±16.5 V on the analog input pins. However, it's recommended to add external protection circuits, such as voltage-limiting resistors, diodes, or TVS (transient voltage suppressor) devices, to protect the device from higher voltage transients or surges.
  • The recommended power-up sequence is to power up the VDD pin first, followed by the VIO pin, and then the AVDD pin. Failure to follow this sequence may result in incorrect device operation, increased power consumption, or even device damage.
