AD7660ASTZRL - Analog Devices

Description: Throughput: 100 kSPS INL: 3 LSB Max (0.0046% of Full-Scale) 16-Bit Resolution with No Missing Codes S/(N+D): 87 dB Min @ 10 kHz, 90 dB Typ @ 45 kHz THD: –96 dB Max @ 10 kHz Analog Input Voltage Range: 0 V to 2.5 V Both AC and DC Specifications No Pipeline Delay Parallel and Serial 5 V/3 V Interface SPI®/QSPI™/MICROWIRE™/DSP Compatible Single 5 V Supply Operation 21 mW Typical Power Dissipation, 21 W @ 100 SPS Power-Down Mode: 7 W Max Package: 48-Lead Quad Flatpack (LQFP) 48-Lead Chip Scale P

Download AD7660ASTZRL Model

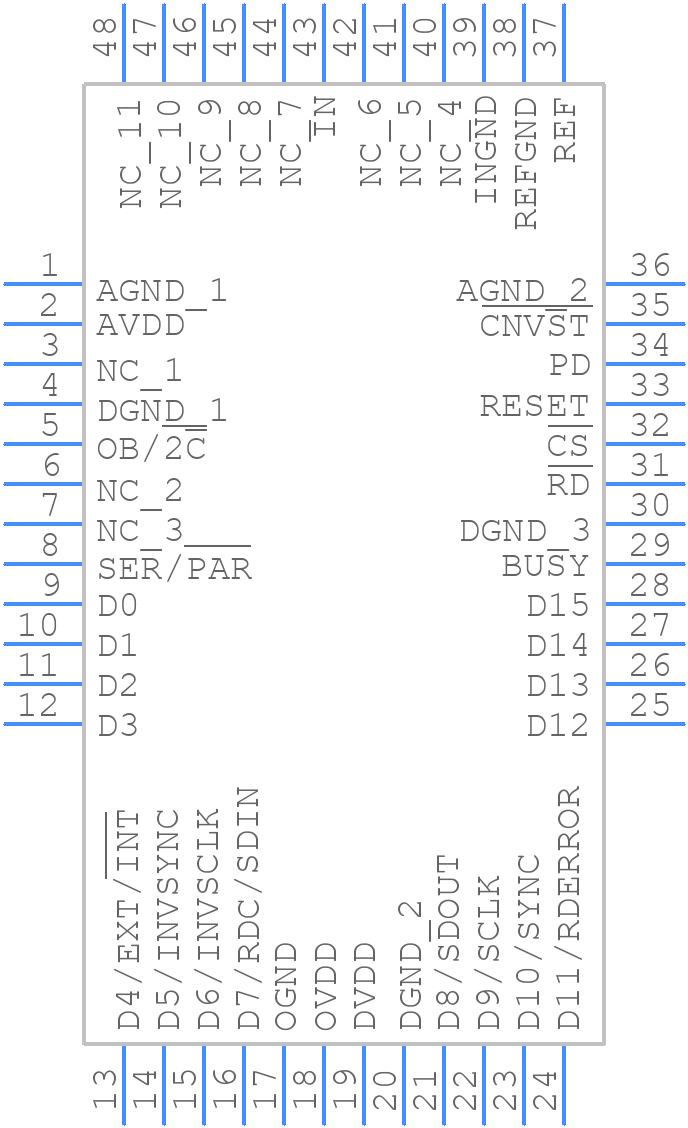

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
AD7660ASTZRL - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - (ST-48)
click to zoom
3D Models
AD7660ASTZRL - Analog Devices  - 3D model - Quad Flat Packages - (ST-48)
click to zoom

AD7660ASTZRL Details

  • Manufacturer Part Number:

    AD7660ASTZRL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Package Description:

    ROHS COMPLIANT, PLASTIC, MS-026BBC, LQFP-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    ST-48

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    3 V

  • Analog Input Voltage-Min:

    -0.1 V

  • Conversion Time-Max:

    2 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Linearity Error-Max (EL):

    0.0046%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    SERIAL, PARALLEL, WORD

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.1 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1.6 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm
