AD7663ACPZRL - Analog Devices

Description: 4-Channel Single ADC SAR 250ksps 16-bit Parallel/Serial 48-Pin LFCSP EP T/R

Download AD7663ACPZRL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

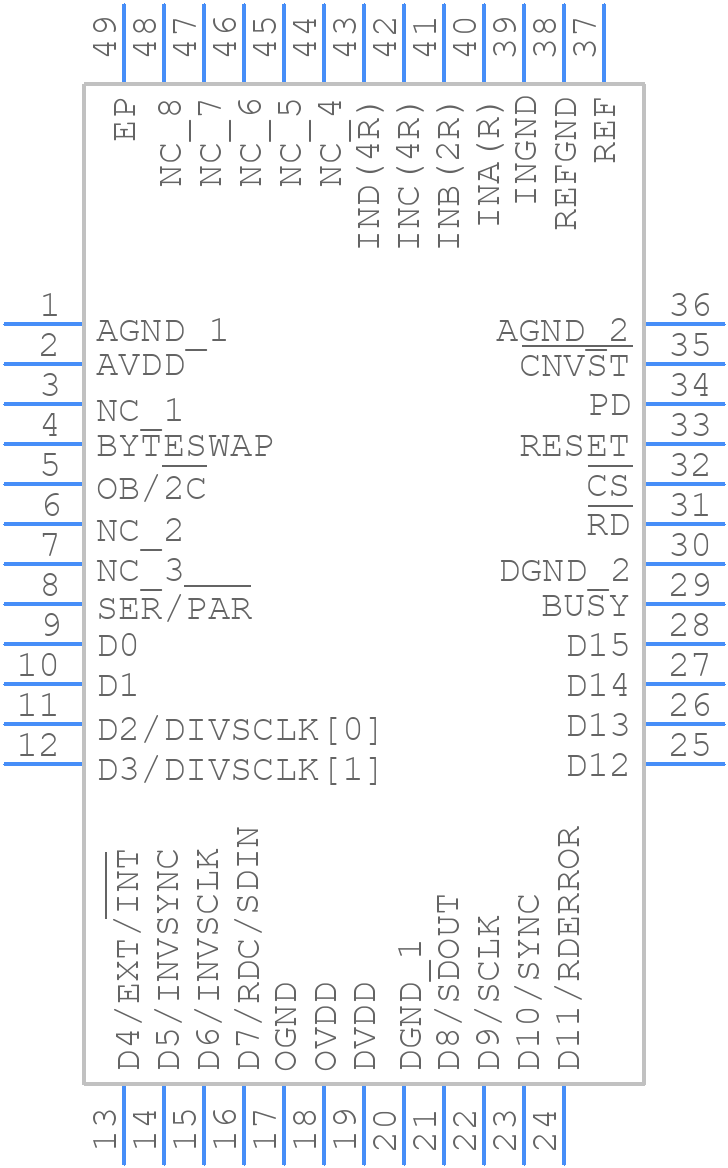

AD7663ACPZRL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7663ACPZRL - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - cp-48
click to zoom
3D Models
AD7663ACPZRL - Analog Devices - 3D model - Quad Flat No-Lead - cp-48
click to zoom

AD7663ACPZRL Details

  • Manufacturer Part Number:

    AD7663ACPZRL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    MO-220VKKD-2, LFCSP-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    CP-48-1

  • Country Of Origin:

    Singapore

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    10 V

  • Analog Input Voltage-Min:

    -10 V

  • Conversion Time-Max:

    1.25 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-XQCC-N48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Linearity Error-Max (EL):

    0.0046%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    4

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    SERIAL, PARALLEL, WORD

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.27SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.25 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    5 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

AD7663ACPZRL Frequently Asked Questions (FAQs)

  • The recommended layout and routing for the AD7663ACPZRL involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog input traces. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog power plane and a dedicated digital power plane.
  • To optimize the performance of the AD7663ACPZRL in a noisy environment, it's recommended to use a low-pass filter on the analog input, use a shielded cable for the analog input, and keep the AD7663ACPZRL away from high-frequency noise sources. Additionally, using a ferrite bead or a common-mode choke on the analog input can help to reduce noise.
  • The maximum sampling rate that can be achieved with the AD7663ACPZRL is 250 kSPS. However, the actual sampling rate may be limited by the system's clock frequency, the analog input bandwidth, and the digital interface.
  • The AD7663ACPZRL does not require calibration. It has an internal calibration circuit that calibrates the device during power-up. However, if the user wants to perform an external calibration, it can be done by applying a known input voltage and reading the corresponding digital output code.
  • The power consumption of the AD7663ACPZRL depends on the operating mode and the clock frequency. In normal mode, the typical power consumption is 15 mW at 2.5 V and 30 mW at 5 V. In shutdown mode, the typical power consumption is 1 μW at 2.5 V and 2 μW at 5 V.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7663ACPZRL Overview

Use the download button to access the AD7663ACPZRL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD766, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
