AD767JP - Analog Devices

Description: Microprocessor-Compatible 12-Bit D/A Converter

Download AD767JP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

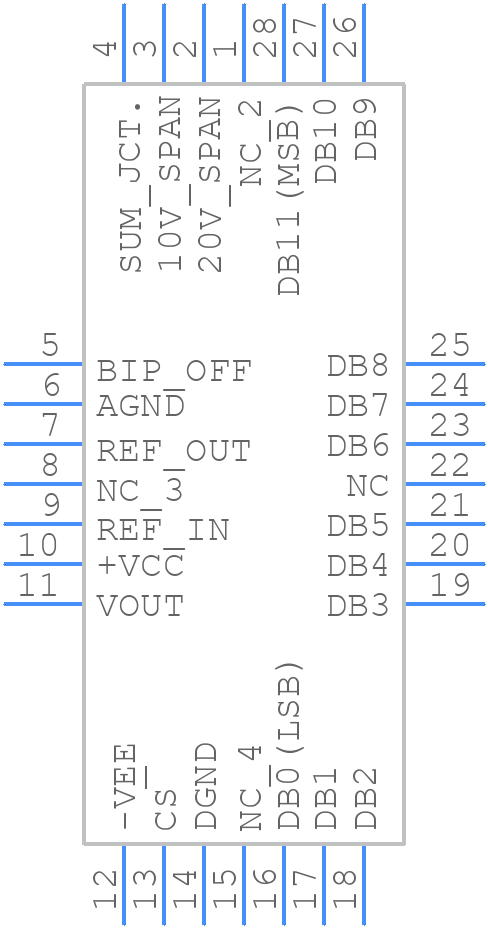

AD767JP - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD767JP - Analog Devices PCB footprint - Other - Other - PLCC127P1244X1244X457-28N
click to zoom
3D Models
AD767JP - Analog Devices - 3D model - Other - PLCC127P1244X1244X457-28N
click to zoom

AD767JP Details

  • Manufacturer Part Number:

    AD767JP

  • Source Url Status Check Date:

    2013-05-01 14:56:19.617

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QLCC

  • Package Description:

    LCC-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    P-28A

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Analog Output Voltage-Max:

    10 V

  • Analog Output Voltage-Min:

    -10 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY, OFFSET BINARY

  • Input Format:

    PARALLEL, WORD

  • JESD-30 Code:

    S-PQCC-J28

  • JESD-609 Code:

    e0

  • Length:

    11.506 mm

  • Linearity Error-Max (EL):

    0.02441%

  • Moisture Sensitivity Level:

    1

  • Negative Supply Voltage-Nom:

    -15 V

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCN

  • Package Equivalence Code:

    LCC28,.45SQ

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    225

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.51 mm

  • Settling Time-Max:

    4 µs

  • Settling Time-Nom (tstl):

    3 µs

  • Supply Voltage-Nom:

    15 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    J BEND

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    QUAD

  • Width:

    11.506 mm

AD767JP Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VCC first, followed by AVCC, and then the digital inputs. This ensures that the internal voltage regulators are powered up correctly and reduces the risk of latch-up or damage to the device.
  • To optimize the layout, keep the analog and digital grounds separate, use a solid ground plane, and keep the analog input traces short and shielded. Also, place the decoupling capacitors close to the device pins and use a low-impedance power supply to minimize noise and voltage drops.
  • The maximum sampling rate of the AD767JP is 500 kSPS, but this can be limited by the conversion time, settling time, and the clock frequency. The actual sampling rate may be lower depending on the specific application and system requirements.
  • The AD767JP outputs 16-bit data in a parallel format. The output data can be handled by connecting it to a microcontroller or FPGA, and then processing the data using software or firmware. The output data can also be processed using an external digital signal processor or ASIC.
  • The AD767JP's performance is affected by temperature, with changes in offset voltage, gain error, and linearity. The device is specified to operate over a temperature range of -40°C to +85°C, and the user should consider these temperature effects when designing the system.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

AD767JP Overview

Use the download button to access the AD767JP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD767, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
