AD767KPZ - Analog Devices

Description: AD767KPZ, 12 bit-Bit DAC Parallel, 28-Pin PLCC

Download AD767KPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

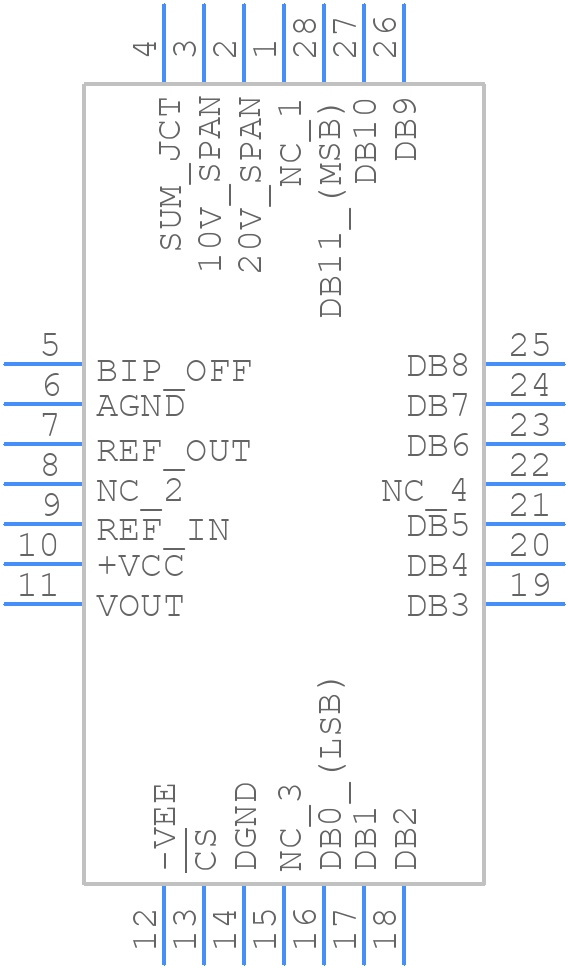

AD767KPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints

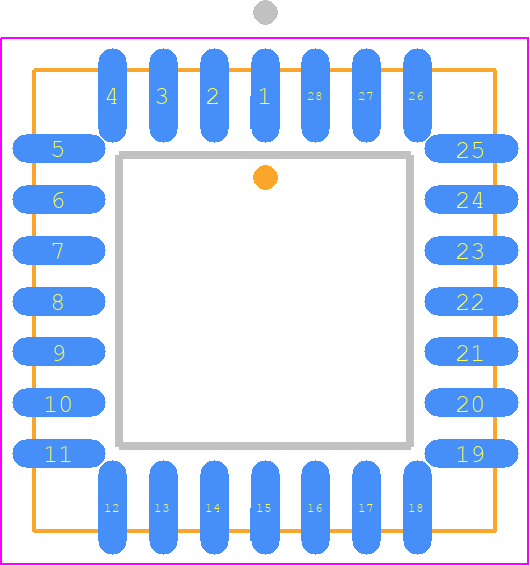

AD767KPZ - Analog Devices PCB footprint - Plastic Leaded Chip Carrier - Plastic Leaded Chip Carrier - P-28A
click to zoom
3D Models
AD767KPZ - Analog Devices - 3D model - Plastic Leaded Chip Carrier - P-28A
click to zoom

AD767KPZ Details

  • Manufacturer Part Number:

    AD767KPZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    QLCC

  • Package Description:

    PLASTIC, LCC-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    P-28A

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Analog Output Voltage-Max:

    10 V

  • Analog Output Voltage-Min:

    -10 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY, OFFSET BINARY, 2'S COMPLEMENT BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PQCC-J28

  • JESD-609 Code:

    e3

  • Length:

    11.506 mm

  • Linearity Error-Max (EL):

    0.0122%

  • Moisture Sensitivity Level:

    3

  • Negative Supply Voltage-Nom:

    -15 V

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCJ

  • Package Equivalence Code:

    LDCC28,.5SQ

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.57 mm

  • Settling Time-Max:

    4 µs

  • Settling Time-Nom (tstl):

    3 µs

  • Supply Current-Max:

    23 mA

  • Supply Voltage-Nom:

    15 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    J BEND

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    QUAD

  • Width:

    11.506 mm

AD767KPZ Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by VREF, and then the analog input signal. This ensures that the internal reference voltage is stable before the analog-to-digital conversion begins.
  • To minimize noise and ensure accurate conversions, it is recommended to keep the analog input signal traces as short as possible, use a solid ground plane, and keep the digital output traces away from the analog input traces. Additionally, decoupling capacitors should be placed close to the VDD and VREF pins to filter out noise.
  • The maximum sampling rate of the AD767KPZ is 500 kSPS (kilosamples per second). However, this rate may be limited by the specific application and the quality of the analog input signal.
  • The AD767KPZ has internal overvoltage protection on the analog input pins, which can withstand voltages up to ±16.5 V. However, it is still recommended to use external protection circuitry, such as voltage-limiting resistors or diodes, to prevent damage to the device in case of overvoltage conditions.
  • The typical settling time of the AD767KPZ's internal reference voltage is around 10 ms. This means that the device requires around 10 ms to settle to its final output voltage after power-up or a change in the reference voltage input.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD767KPZ Overview

Use the download button to access the AD767KPZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD767, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
