AD7680BRMZ - Analog Devices

Description: Specified for VDD of 2.5 V to 5.5 V Low power 3 mW typ at 100 kSPS with 2.5 V supply 3.9 mW typ at 100 kSPS with 3 V supply 16.7 mW typ at 100 kSPS with 5 V supply Wide input bandwidth 86 dB SNR at 10 kHz input frequency Flexible power/serial clock speed management No pipeline delays High speed serial interface SPI®/QSPI™/μWire/DSP compatible Standby mode: 0.5 μA max 6-Lead SOT-23 and 8-Lead MSOP packages

Download AD7680BRMZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

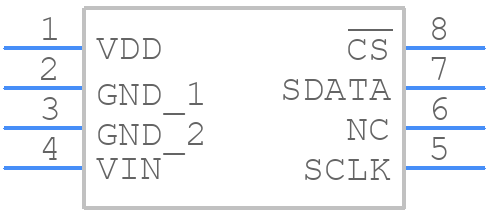

AD7680BRMZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7680BRMZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - (RM-8)
click to zoom
3D Models
AD7680BRMZ - Analog Devices - 3D model - Small Outline Packages - (RM-8)
click to zoom

AD7680BRMZ Details

  • Manufacturer Part Number:

    AD7680BRMZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    ROHS COMPLIANT, MO-187AA, MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    RM-8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    5.5 V

  • Conversion Time-Max:

    9.6 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0053%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.1 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    3.6 mA

  • Supply Voltage-Nom:

    3.6 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

AD7680BRMZ Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the analog and digital signals separate. Also, keep the ADC input pins away from the digital signals and use a low-pass filter to reduce noise.
  • The AD7680BRMZ has an internal calibration circuit that can be used to calibrate the ADC. The calibration process involves writing a specific code to the calibration register to initiate the calibration sequence. The device also has an offset calibration register that can be used to trim the offset error.
  • The AD7680BRMZ can achieve a maximum sampling rate of 100 kSPS. However, the actual sampling rate may be limited by the system's clock frequency, the conversion time, and the settling time of the input signal.
  • The AD7680BRMZ outputs 16-bit data in a twos-complement format. The output data can be handled by using a microcontroller or a digital signal processor to read the data from the ADC and process it further. The output data can also be stored in a memory or transmitted to a host system for further processing.
  • The AD7680BRMZ has a typical power consumption of 15 mW at a supply voltage of 5 V. To reduce power consumption, the device can be operated at a lower supply voltage, and the power-down mode can be used to reduce power consumption when the device is not in use.
