AD7682BCPZRL7 - Analog Devices

Description: 16-Bit, 4-Channel, 250 kSPS PulSAR ADC

Download AD7682BCPZRL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

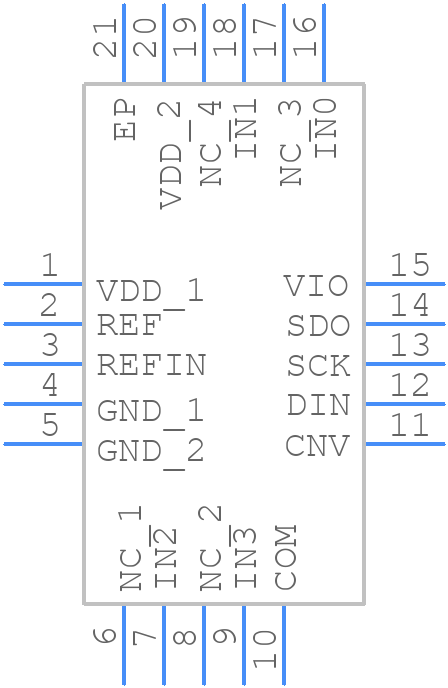

AD7682BCPZRL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7682BCPZRL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-20-10
click to zoom
3D Models
AD7682BCPZRL7 - Analog Devices - 3D model - Quad Flat No-Lead - CP-20-10
click to zoom

AD7682BCPZRL7 Details

  • Manufacturer Part Number:

    AD7682BCPZRL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    CP-20-10

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    2.9 V

  • Analog Input Voltage-Min:

    0.25 V

  • Conversion Time-Max:

    2.2 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-XQCC-N20

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Linearity Error-Max (EL):

    0.0023%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    4

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.25 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    4 mm

AD7682BCPZRL7 Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the analog signal traces away from the digital signal traces. Additionally, use a low-pass filter on the AVDD and DVDD pins to reduce noise.
  • To ensure accurate conversion results in a noisy environment, use a low-pass filter on the analog input signal, use a shielded cable to connect the sensor to the AD7682BCPZRL7, and consider using a differential input configuration to reduce common-mode noise.
  • The recommended power-up sequence is to power up the AVDD pin first, followed by the DVDD pin, and then the digital interface (e.g., SPI or I2C). This ensures that the analog circuitry is powered up before the digital interface.
  • The internal oscillator clock frequency variation due to temperature changes can be handled by using an external clock source or by using a clock frequency compensation circuit. Additionally, the AD7682BCPZRL7 has a clock frequency adjustment register that can be used to trim the internal oscillator frequency.
  • The recommended method for calibrating the AD7682BCPZRL7 is to use a known input voltage and adjust the offset and gain registers to achieve the desired accuracy. Additionally, the AD7682BCPZRL7 has a built-in calibration mode that can be used to calibrate the device.
