Part Image

AD7683BCPZRL7 - Analog Devices

Description: 1-Channel Single ADC SAR 100ksps 16-bit Serial 8-Pin LFCSP EP T/R

Download AD7683BCPZRL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

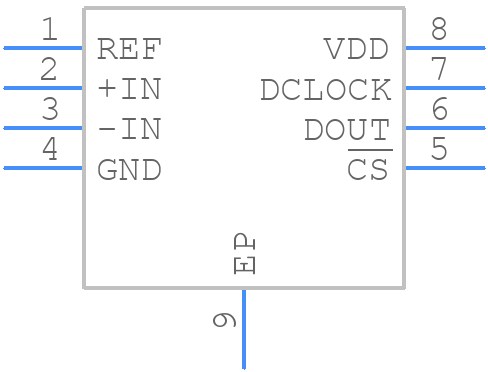

AD7683BCPZRL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7683BCPZRL7 - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - CP-8-3
click to zoom
3D Models
AD7683BCPZRL7 - Analog Devices - 3D model - Small Outline No-lead - CP-8-3
click to zoom

AD7683BCPZRL7 Details

  • Manufacturer Part Number:

    AD7683BCPZRL7

  • Source Url Status Check Date:

    2013-05-01 14:56:19.728

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SON

  • Package Description:

    3 X 3 MM, ROHS COMPLIANT, LFCSP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    CP-8-3

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    5.5 V

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-XDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0046%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.12,25

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.1 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Nom:

    2.7 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

AD7683BCPZRL7 Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the analog signal traces away from the digital signal traces. Additionally, use a low-pass filter on the reference voltage input to reduce noise.
  • To ensure accurate conversion results, make sure to use a common ground plane and decouple the analog and digital supplies. Also, ensure that the reference voltage is stable and noise-free, and that the analog input signals are properly filtered and buffered.
  • The recommended calibration procedure involves applying a known input voltage to the ADC, taking multiple conversions, and calculating the gain and offset errors. Then, adjust the internal calibration registers to compensate for these errors. Refer to the datasheet for the specific calibration procedure.
  • To handle overvoltage conditions, use external protection diodes or voltage clamps to limit the input voltage to within the specified range. Additionally, use a voltage divider or an attenuator to reduce the input voltage to a safe level.
  • The recommended method is to use the external clock input pin (CLKIN) and ensure that the clock signal is stable, noise-free, and within the specified frequency range. Also, ensure that the clock signal is properly terminated and decoupled to prevent noise coupling.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7683BCPZRL7 Overview

Use the download button to access the AD7683BCPZRL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD768, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
