- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for AD7684BRM
- Part Number AD7684BRM
- Manufacturer Analog Devices
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - RM-8
- Released Date May 15, 2022
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
AD7684BRM Details
-
Manufacturer Part Number:
AD7684BRM
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
TSSOP
-
Package Description:
MO-187-AA, MSOP-8
-
Pin Count:
8
-
HTS Code:
8542.39.00.30
-
Manufacturer:
Analog Devices Inc
-
YTEOL:
0
-
Analog Input Voltage-Max:
5.5 V
-
Analog Input Voltage-Min:
-2.7 V
-
Converter Type:
ADC, SUCCESSIVE APPROXIMATION
AD7684BRM Frequently Asked Questions (FAQs)
-
A good layout and routing practice for the AD7684BRM involves keeping the analog and digital signals separate, using a solid ground plane, and minimizing the length of the analog signal traces. It's also recommended to use a low-ESR capacitor for the AVDD and DVDD pins, and to decouple the REF pin with a 10uF capacitor.
-
To minimize noise and EMI sensitivity, it's recommended to use a shielded enclosure, keep the AD7684BRM away from high-frequency sources, and use a low-pass filter on the analog input signals. Additionally, using a common-mode choke on the AVDD and DVDD lines can help reduce noise and EMI.
-
The AD7684BRM can achieve a maximum sampling rate of 100kSPS, but this may vary depending on the specific application and the quality of the analog input signal. It's recommended to consult the datasheet and application notes for more information on achieving optimal sampling rates.
-
The AD7684BRM does not require calibration, as it has an internal calibration circuit that sets the gain and offset of the ADC. However, it's recommended to perform a system-level calibration to ensure that the ADC is operating within the desired specifications.
-
The power consumption of the AD7684BRM is typically around 15mW, but this can vary depending on the specific application and operating conditions. To reduce power consumption, it's recommended to use a lower supply voltage, reduce the sampling rate, and use the power-down mode when not in use.
Trust Checks
Community Provided
System Verified
Community Approved
AD7684BRM Overview

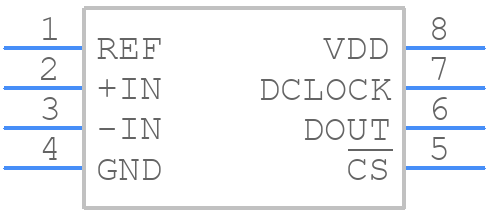

Use the download button to access the AD7684BRM schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD768,
or try a keyword search, such as Analog to Digital Converters
