AD7687BCPZRL7 - Analog Devices

Description: Analog to Digital Converters - ADC 16-Bit, 250 KSPS Differential ADC. I.C.

Download AD7687BCPZRL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

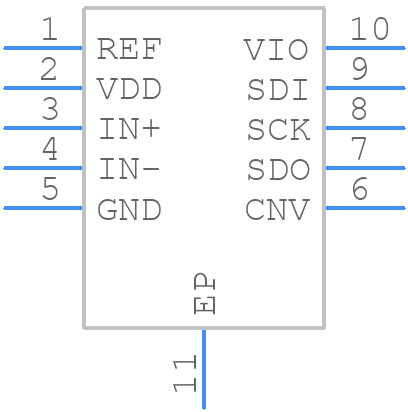

AD7687BCPZRL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7687BCPZRL7 - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - CP-10-9 (LFCSP)
click to zoom
3D Models
AD7687BCPZRL7 - Analog Devices - 3D model - Small Outline No-lead - CP-10-9 (LFCSP)
click to zoom

AD7687BCPZRL7 Details

  • Manufacturer Part Number:

    AD7687BCPZRL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    3 X 3 MM, ROHS COMPLIANT, LFCSP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    CP-10-9

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    5.8 V

  • Analog Input Voltage-Min:

    -0.5 V

  • Conversion Time-Max:

    2.2 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0023%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.11,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.25 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    0.85 mm

  • Supply Voltage-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

AD7687BCPZRL7 Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the analog signal traces away from the digital signal traces. Additionally, use a low-ESR capacitor for the VDD pin and a 0.1uF capacitor for the REFIN pin.
  • The AD7687BCPZRL7 has an internal calibration circuit that can be enabled by setting the CAL bit in the control register. The device also has an internal voltage reference that can be calibrated using the REFSEL pin. It is recommended to follow the calibration procedure outlined in the datasheet to ensure accurate conversions.
  • The recommended power-up sequence is to first apply the analog power supply (VDD) and then the digital power supply (VIO). The VDD pin should be powered up before the VIO pin to prevent damage or incorrect operation.
  • The AD7687BCPZRL7 has a power-down mode that can be enabled by setting the PDWN bit in the control register. In power-down mode, the device consumes minimal power. To minimize power consumption, it is recommended to put the device in power-down mode when not in use.
  • The AD7687BCPZRL7 has a serial interface that can be interfaced with a microcontroller or FPGA using a SPI or I2C interface. The recommended method is to use a dedicated SPI or I2C interface chip or module to interface with the AD7687BCPZRL7.
