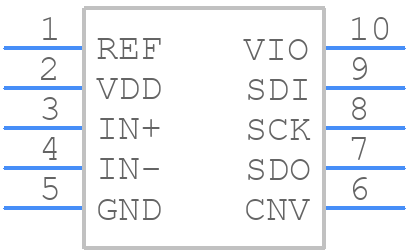

AD7688BRMZ - Analog Devices

AD7688BRMZ Frequently Asked Questions (FAQs)

• What is the recommended layout and routing for the AD7688BRMZ to minimize noise and ensure optimal performance?
  A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the analog signal traces away from the digital signal traces. Additionally, use a low-pass filter on the AVDD and DVDD pins to reduce noise.
• How do I properly calibrate the AD7688BRMZ to ensure accurate conversions?
  The AD7688BRMZ has an internal calibration circuit that can be used to calibrate the device. The calibration process involves writing a specific code to the CAL register to initiate the calibration sequence. The device will then adjust its internal offset and gain to ensure accurate conversions.
• What is the maximum sampling rate that can be achieved with the AD7688BRMZ?
  The AD7688BRMZ can achieve a maximum sampling rate of 250 kSPS. However, the actual sampling rate may be limited by the system's clock frequency, the conversion time, and the settling time of the analog input signal.
• How do I handle the output data from the AD7688BRMZ, and what is the format of the output data?
  The AD7688BRMZ outputs 16-bit data in a twos-complement format. The output data is available on the D[15:0] pins and is valid on the rising edge of the SCK pin. The output data can be handled by a microcontroller or a digital signal processor for further processing.
• What is the power consumption of the AD7688BRMZ, and how can I reduce power consumption in my design?
  The AD7688BRMZ has a typical power consumption of 15 mW at 250 kSPS. To reduce power consumption, you can reduce the sampling rate, use the power-down mode, or use the shutdown mode when the device is not in use. Additionally, you can use a lower supply voltage or reduce the clock frequency to further reduce power consumption.
