AD7689ACPZ - Analog Devices

Description: 16-Bit, 8-Channel, 250 kSPS PulSAR ADC

Download AD7689ACPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

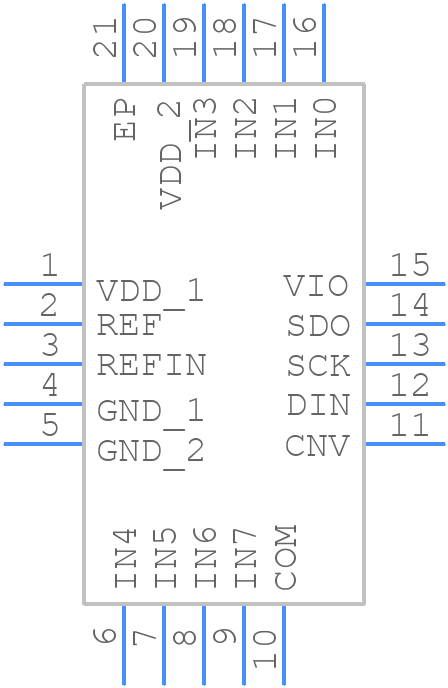

Symbol
AD7689ACPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7689ACPZ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - AD7944BCPZ-RL7s
click to zoom
3D Models
AD7689ACPZ - Analog Devices - 3D model - Quad Flat No-Lead - AD7944BCPZ-RL7s
click to zoom

AD7689ACPZ Details

  • Manufacturer Part Number:

    AD7689ACPZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    CP-20-10

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    2.9 V

  • Analog Input Voltage-Min:

    0.25 V

  • Conversion Time-Max:

    2.2 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-XQCC-N20

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Linearity Error-Max (EL):

    0.0061%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    8

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.25 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

AD7689ACPZ Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the analog and digital signals separate. Also, keep the ADC input pins away from the digital signals and use a low-pass filter to reduce noise.
  • The AD7689ACPZ has an internal calibration circuit that can be used to calibrate the ADC. The calibration process involves writing a specific code to the calibration register to initiate the calibration sequence. The device also has an offset calibration register that can be used to trim the offset error.
  • The AD7689ACPZ can achieve a maximum sampling rate of 250 kSPS. However, the actual sampling rate may be limited by the system's clock frequency, the conversion time, and the settling time of the input signal.
  • The AD7689ACPZ outputs 16-bit data in a twos-complement format. The output data can be handled by using a microcontroller or a digital signal processor to read the data from the ADC and process it further. The output data can also be stored in a memory or transmitted to a host system for further processing.
  • The AD7689ACPZ has a typical power consumption of 15 mW at 250 kSPS. To reduce power consumption, the device can be operated at a lower sampling rate, and the power-down mode can be used when the device is not in use. Additionally, the device's power consumption can be reduced by using a lower supply voltage and by optimizing the system's clock frequency.
