A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the analog signal traces away from the digital signal traces. Additionally, use a low-pass filter on the AVDD and DVDD pins to reduce noise.
To optimize the AD7694ARMZRL7's performance, consider the following: choose the correct gain setting, adjust the sampling rate, and optimize the analog input range. Additionally, consider using the internal reference voltage or an external reference voltage, and adjust the power-down mode to minimize power consumption.
When selecting an external reference voltage, consider the following: the reference voltage should be stable and low noise, the voltage range should be compatible with the AD7694ARMZRL7's input range, and the reference voltage should be decoupled from the power supply to minimize noise.
To troubleshoot common issues, check the following: ensure proper power supply decoupling, verify the analog input range and gain setting, check for noise on the analog input signals, and verify the digital output format and communication protocol.
The AD7694ARMZRL7 is rated for operation from -40°C to 125°C. To ensure reliable operation, consider the following: ensure good thermal conduction from the device to the PCB, use a heat sink if necessary, and avoid overheating the device during soldering or rework.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AD7694ARMZRL7 Overview

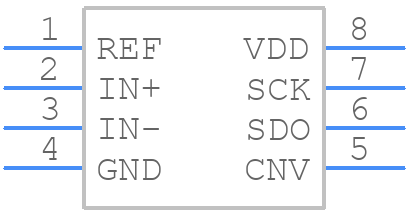

Use the download button to access the AD7694ARMZRL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD769,
or try a keyword search, such as Analog to Digital Converters
