AD7694BRMZRL7 - Analog Devices

Description: Analog Devices AD7694BRMZRL7, 16 bit Serial ADC, Differential Input, 8-Pin MSOP

Download AD7694BRMZRL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

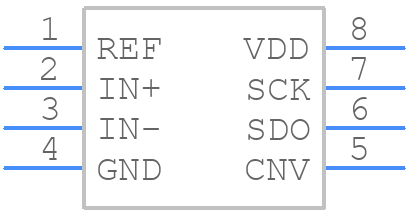

Symbol
AD7694BRMZRL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7694BRMZRL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MICRO SOIC_2023-2
click to zoom
3D Models
AD7694BRMZRL7 - Analog Devices - 3D model - Small Outline Packages - MICRO SOIC_2023-2
click to zoom

AD7694BRMZRL7 Details

  • Manufacturer Part Number:

    AD7694BRMZRL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MSOP

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    RM-8

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    5.25 V

  • Conversion Time-Max:

    3.2 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0061%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.25 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    1.09 mm

  • Supply Current-Max:

    5 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

AD7694BRMZRL7 Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the analog and digital signals separate. Also, keep the input signals away from the digital signals and use shielding if possible.
  • The AD7694BRMZRL7 has an internal calibration feature that can be used to calibrate the device. The calibration process involves writing a specific code to the calibration register to initiate the calibration process. The device will then adjust its internal offset and gain to ensure accurate conversions.
  • The maximum sampling rate of the AD7694BRMZRL7 is 250 kSPS. The power consumption of the device increases with the sampling rate, so it's essential to consider the power consumption when selecting the sampling rate.
  • The AD7694BRMZRL7 outputs 16-bit or 18-bit data, depending on the mode of operation. The output data is in two's complement format, and it's essential to consider the sign bit when processing the data.
  • The AD7694BRMZRL7 is specified to operate over a temperature range of -40°C to 125°C. The device's performance, including its accuracy, gain, and offset, can be affected by temperature. It's essential to consider the temperature range of the application and the device's specifications when designing the system.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7694BRMZRL7 Overview

Use the download button to access the AD7694BRMZRL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD769, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
