AD7699BCBZ-RL7 - Analog Devices

Description: 8-Channel Single ADC SAR 500ksps 16-bit Serial 20-Pin WLCSP T/R

Download AD7699BCBZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

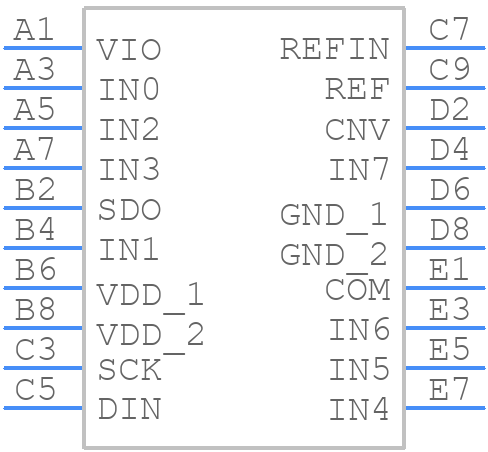

AD7699BCBZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7699BCBZ-RL7 - Analog Devices PCB footprint - Other - Other - AD7699BCBZ-RL7-5
click to zoom
3D Models
AD7699BCBZ-RL7 - Analog Devices - 3D model - Other - AD7699BCBZ-RL7-5
click to zoom

AD7699BCBZ-RL7 Details

  • Manufacturer Part Number:

    AD7699BCBZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    WLCSP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    CB-20-12

  • Country Of Origin:

    Singapore

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    2.9 V

  • Analog Input Voltage-Min:

    -0.25 V

  • Conversion Time-Max:

    1.675 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-PBGA-B20

  • JESD-609 Code:

    e1

  • Length:

    2.39 mm

  • Linearity Error-Max (EL):

    0.0038%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    8

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Sample Rate:

    0.5 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    0.56 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Width:

    2.39 mm

AD7699BCBZ-RL7 Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the analog signal traces away from the digital signal traces. Additionally, use a low-pass filter on the AVDD and DVDD pins to reduce noise.
  • The AD7699BCBZ-RL7 has an internal calibration circuit that can be enabled by setting the CAL bit in the control register. The device also has an internal voltage reference that can be used for calibration. It is recommended to perform a system calibration after power-up and after any changes to the reference voltage or gain settings.
  • The recommended power-up sequence is to first apply the analog supply voltage (AVDD) and then the digital supply voltage (DVDD). The power-up sequence should be controlled to ensure that the digital supply voltage is not applied before the analog supply voltage is stable.
  • The AD7699BCBZ-RL7 has internal overvoltage protection on the analog input pins, but it is still recommended to use external protection circuitry, such as clamping diodes or voltage-limiting resistors, to prevent damage from excessive voltage levels.
  • The AD7699BCBZ-RL7 can be synchronized with an external clock source by connecting the clock signal to the CLKIN pin and setting the CLKSEL bit in the control register. The device can also be operated in a free-running mode without an external clock source.
