AD7699BCPZ - Analog Devices

Description: AD7699BCPZ, 16-Bit Analogue to Digital Converter, Differential, Serial, 20-Pin LFCSP EP

Download AD7699BCPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

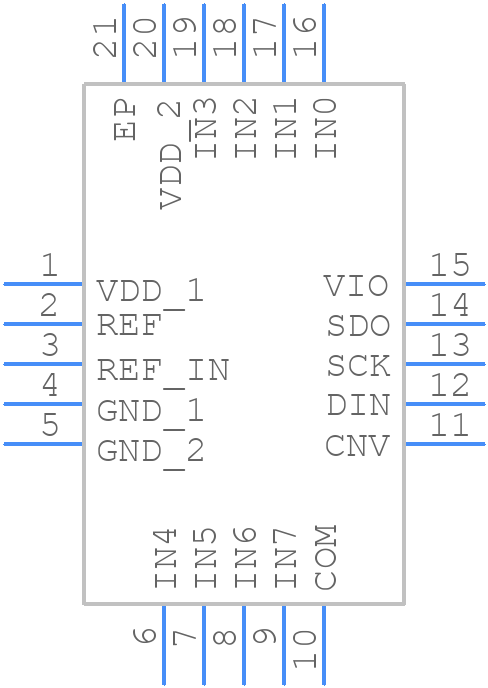

AD7699BCPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7699BCPZ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-20-10
click to zoom
3D Models
AD7699BCPZ - Analog Devices - 3D model - Quad Flat No-Lead - CP-20-10
click to zoom

AD7699BCPZ Details

  • Manufacturer Part Number:

    AD7699BCPZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    CP-20-10

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    2.9 V

  • Analog Input Voltage-Min:

    -0.25 V

  • Conversion Time-Max:

    2 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-XQCC-N20

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Linearity Error-Max (EL):

    0.0023%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    8

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.5 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

AD7699BCPZ Frequently Asked Questions (FAQs)

  • The AD7699BCPZ requires careful layout and placement to minimize noise and ensure optimal performance. It is recommended to place the device close to the analog signal sources, use a solid ground plane, and keep the analog and digital signal traces separate. Additionally, decoupling capacitors should be placed close to the device's power pins.
  • To optimize the AD7699BCPZ's performance, it is recommended to carefully select the gain and offset settings, adjust the sampling rate and clock frequency, and optimize the analog front-end circuitry. Additionally, the device's internal calibration feature can be used to improve performance.
  • The AD7699BCPZ is specified to operate from -40°C to 125°C. However, high temperatures can affect the device's performance, including increased noise and decreased accuracy. It is recommended to consider the device's thermal characteristics and take necessary precautions to ensure reliable operation in high-temperature environments.
  • To ensure EMC, it is recommended to follow proper PCB design and layout practices, use shielding and filtering, and ensure that the device is properly grounded. Additionally, the AD7699BCPZ's digital outputs should be properly terminated and the device's clock frequency should be carefully selected to minimize electromagnetic interference.
  • The AD7699BCPZ is not specifically designed to operate in radiation-intensive environments. However, Analog Devices provides radiation-tolerant versions of the device for use in such environments. It is recommended to consult with Analog Devices or a qualified radiation expert to determine the suitability of the AD7699BCPZ for a specific radiation-intensive application.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7699BCPZ Overview

Use the download button to access the AD7699BCPZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD769, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
