![AD7701BRZ-REEL - Analog Devices - 3D model - Small Outline Packages - 20-Lead Standard Small Outline Package [SOIC] Wide Body (R-20)](https://media.componentsearchengine.com/images/available.svg?v=0.75.1)
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for AD7701BRZ-REEL
- Part Number AD7701BRZ-REEL
- Manufacturer Analog Devices
- Pin Count 20
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - 20-Lead Standard Small Outline Package [SOIC] Wide Body (R-20)
- Released Date Jan 11, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
AD7701BRZ-REEL Details
-
Manufacturer Part Number:
AD7701BRZ-REEL
-
Brand Name:
Analog Devices Inc
-
Pbfree Code:
No
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
SOIC
-
Package Description:
SOIC-20
-
Pin Count:
20
-
Manufacturer Package Code:
RW-20
-
Country Of Origin:
Taiwan
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
AD7701BRZ-REEL Frequently Asked Questions (FAQs)
-
The recommended layout and placement for the AD7701BRZ-REEL can be found in the AD7701 Evaluation Board documentation, which provides a detailed layout guide and PCB design files. Additionally, Analog Devices provides a layout guide in the AD7701 datasheet, which highlights the importance of keeping the analog and digital grounds separate, and placing the device close to the analog signal sources.
-
The AD7701BRZ-REEL does not require calibration in the classical sense, as it has an internal calibration mechanism that is performed at power-on. However, the device does require a system calibration to remove any system-level errors. This can be done by applying a known input voltage and measuring the output code, and then using this data to calculate the gain and offset errors.
-
The maximum input voltage range for the AD7701BRZ-REEL is ±10V, but this can be limited by the voltage reference used. The device can also be configured to accept smaller input ranges, such as ±5V or ±2.5V, depending on the application requirements.
-
Yes, the AD7701BRZ-REEL can be used in a multiplexed configuration, where multiple channels are connected to the device and switched between them using an external multiplexer. However, this requires careful consideration of the channel switching time, settling time, and the impact of multiplexer impedance on the measurement accuracy.
-
The power consumption of the AD7701BRZ-REEL depends on the operating mode and the clock frequency. In normal operation, the device consumes around 15mW, but this can be reduced to around 1mW in power-down mode. The device also has a sleep mode that consumes around 10μW.
Trust Checks
Community Provided
System Verified
Community Approved
AD7701BRZ-REEL Overview

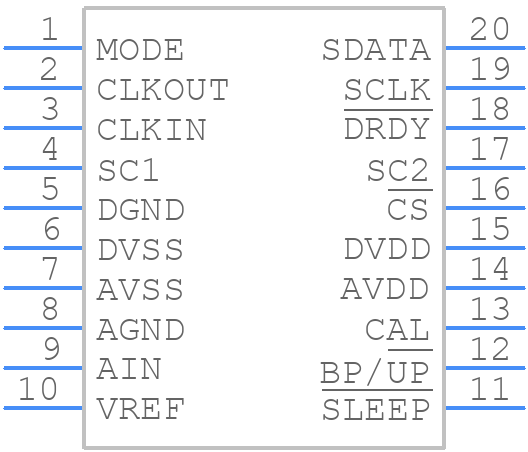

Use the download button to access the AD7701BRZ-REEL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD770,
or try a keyword search, such as Analog to Digital Converters
About Analog Devices
Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries.
Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
