AD7705BN - Rochester Electronics

AD7705BN Details

• Manufacturer Part Number:

  AD7705BN

• Pbfree Code:

  No

• Rohs Code:

  No

• Part Life Cycle Code:

  Active

• Part Package Code:

  DIP

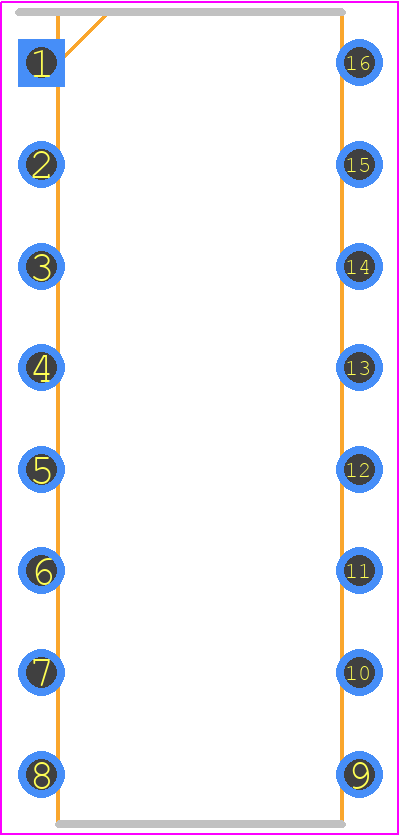

• Package Description:

  0.300 INCH, PLASTIC, MS-001AB, DIP-16

• Pin Count:

  16

• Reach Compliance Code:

  Unknown

• Manufacturer:

  Rochester Electronics LLC

• Analog Input Voltage-Max:

  2.5 V

• Analog Input Voltage-Min:

  -2.5 V

• Converter Type:

  ADC, DELTA-SIGMA

• JESD-30 Code:

  R-PDIP-T16

• JESD-609 Code:

  e0

• Length:

  20.07 mm

• Linearity Error-Max (EL):

  0.003%

• Moisture Sensitivity Level:

  NOT APPLICABLE

• Number of Analog In Channels:

  2

• Number of Bits:

  16

• Number of Functions:

  1

• Number of Terminals:

  16

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Bit Code:

  BINARY, OFFSET BINARY

• Output Format:

  SERIAL

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Peak Reflow Temperature (Cel):

  NOT APPLICABLE

• Sample Rate:

  0.0192 MHz

• Seated Height-Max:

  5.33 mm

• Supply Voltage-Nom:

  3 V

• Surface Mount:

  NO

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  TIN LEAD

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  NOT APPLICABLE

• Width:

  7.62 mm
