AD7705BNZ - Analog Devices

Description: AD7705BNZ, 16 bit ADC Differential, SPI, 16-Pin PDIP

Download AD7705BNZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

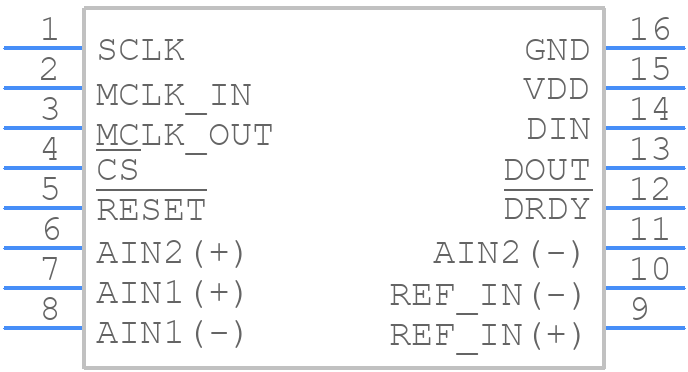

AD7705BNZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7705BNZ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N-16
click to zoom
3D Models
AD7705BNZ - Analog Devices - 3D model - Dual-In-Line Packages - N-16
click to zoom

AD7705BNZ Details

  • Manufacturer Part Number:

    AD7705BNZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Package Description:

    0.300 INCH, LEAD FREE, PLASTIC, MS-001AB, DIP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    N-16

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    2.5 V

  • Analog Input Voltage-Min:

    -2.5 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    R-PDIP-T16

  • JESD-609 Code:

    e3

  • Length:

    20.07 mm

  • Linearity Error-Max (EL):

    0.003%

  • Number of Analog In Channels:

    2

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, OFFSET BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.0192 MHz

  • Seated Height-Max:

    5.33 mm

  • Supply Current-Max:

    0.32 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

AD7705BNZ Frequently Asked Questions (FAQs)

  • A good layout and grounding technique is crucial for the AD7705BNZ. It is recommended to use a multi-layer PCB with a solid ground plane, and to keep the analog and digital grounds separate. The AD7705BNZ should be placed close to the analog signal sources, and the digital lines should be kept away from the analog lines.
  • To optimize the performance of the AD7705BNZ in noisy environments, it is recommended to use a low-pass filter at the input, and to use a shielded cable to connect the sensor to the AD7705BNZ. Additionally, the AD7705BNZ should be placed in a shielded enclosure, and the power supply should be well-regulated and filtered.
  • The maximum sampling rate of the AD7705BNZ is 16.7 kHz. However, the actual sampling rate may be limited by the bandwidth of the input signal and the settling time of the ADC.
  • The AD7705BNZ has a built-in calibration capability. The device can be calibrated by applying a known input voltage and adjusting the offset and gain registers to achieve the desired accuracy. The calibration process can be automated using the SPI interface.
  • The power consumption of the AD7705BNZ depends on the operating mode and the sampling rate. In normal mode, the power consumption is typically around 15 mW. In standby mode, the power consumption is typically around 1 mW.
