AD7706BRUZ-REEL7 - Analog Devices

Description: 3-Channel Single ADC Delta-Sigma 500sps 16-bit Serial 16-Pin TSSOP T/R

Download AD7706BRUZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

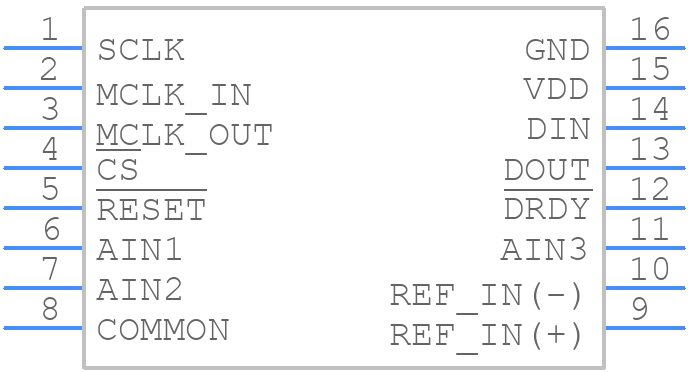

Symbol
AD7706BRUZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7706BRUZ-REEL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16 PIN TSSOP
click to zoom
3D Models
AD7706BRUZ-REEL7 - Analog Devices - 3D model - Small Outline Packages - 16 PIN TSSOP
click to zoom

AD7706BRUZ-REEL7 Details

  • Manufacturer Part Number:

    AD7706BRUZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    LEAD FREE, MO-153AB, TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RU-16

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Input Voltage-Max:

    2.5 V

  • Analog Input Voltage-Min:

    -2.5 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.003%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    3

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, OFFSET BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR, 7 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.0192 MHz

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    0.32 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

AD7706BRUZ-REEL7 Frequently Asked Questions (FAQs)

  • The AD7706BRUZ-REEL7 is a sensitive analog device, and its performance can be affected by the PCB layout and component placement. It is recommended to follow a star-grounding scheme, keep analog and digital grounds separate, and place the device away from high-frequency sources and noise-generating components.
  • The AD7706BRUZ-REEL7 requires calibration and configuration to achieve optimal performance. It is recommended to follow the calibration procedure outlined in the datasheet, and to consult the application notes and evaluation board documentation for specific guidance on configuring the device for your application.
  • When selecting external components for the AD7706BRUZ-REEL7, it is important to consider factors such as tolerance, temperature coefficient, and parasitic effects. For example, capacitors should have a low equivalent series resistance (ESR) and be rated for the operating voltage and temperature range. Resistors should be low-noise and have a low temperature coefficient.
  • When troubleshooting issues with the AD7706BRUZ-REEL7, it is recommended to follow a systematic approach, checking the power supply, clock, and input signals, and verifying that the device is properly configured and calibrated. Consult the datasheet and application notes for guidance on troubleshooting common issues.
  • The AD7706BRUZ-REEL7 is a sensitive analog device that can be affected by temperature. It is recommended to follow proper thermal management practices, such as providing adequate heat sinking, using thermal interface materials, and ensuring good airflow. Consult the datasheet and application notes for specific guidance on thermal management.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7706BRUZ-REEL7 Overview

Use the download button to access the AD7706BRUZ-REEL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD770, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
