AD7707BRUZ-REEL7 - Analog Devices

Description: Analog to Digital Converters - ADC 3V/5V +/-10V Input Range 1 mW 3Ch 16B

Download AD7707BRUZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

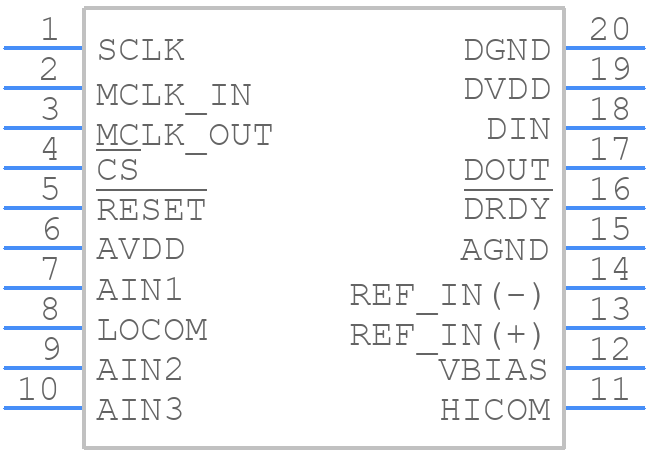

AD7707BRUZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7707BRUZ-REEL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-20 (TSSOP)
click to zoom
3D Models
AD7707BRUZ-REEL7 - Analog Devices - 3D model - Small Outline Packages - RU-20 (TSSOP)
click to zoom

AD7707BRUZ-REEL7 Details

  • Manufacturer Part Number:

    AD7707BRUZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    RU-20

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Input Voltage-Max:

    10 V

  • Analog Input Voltage-Min:

    -10 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    6.5 mm

  • Linearity Error-Max (EL):

    0.003%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    3

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, OFFSET BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR, 7 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    1.1 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    4.4 mm

AD7707BRUZ-REEL7 Frequently Asked Questions (FAQs)

  • The AD7707 datasheet provides general guidelines for layout and placement, but it's recommended to follow Analog Devices' application note AN-931 for more detailed guidance on PCB layout, component placement, and thermal management to ensure optimal performance.
  • The AD7707 has a self-calibration feature, but it's recommended to perform a system-level calibration to account for external components and PCB parasitics. A calibration procedure can be found in the AD7707 datasheet, and additional guidance is provided in application note AN-931.
  • The AD7707 can handle input voltages up to ±10.5 V, but the absolute maximum rating is ±11.5 V. It's recommended to ensure that the input voltage does not exceed the absolute maximum rating to prevent damage to the device.
  • Yes, the AD7707 can be used with an external reference voltage. The device has a REFIN pin that can be connected to an external reference voltage source. The reference voltage range is 2.4 V to 5.5 V, and it's recommended to use a low-noise, low-drift reference voltage source to ensure accurate conversions.
  • The AD7707 has a power-on reset (POR) circuit that ensures the device is in a known state after power-up. The POR timing is typically around 10 ms, but it can vary depending on the power supply ramp time and other factors. It's recommended to wait for at least 10 ms after power-up before initiating conversions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7707BRUZ-REEL7 Overview

Use the download button to access the AD7707BRUZ-REEL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD770, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
