AD7707BRZ - Analog Devices

Description: AD7707BRZ, 16 bit ADC Differential,, Serial, 20-Pin SOIC W

Download AD7707BRZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

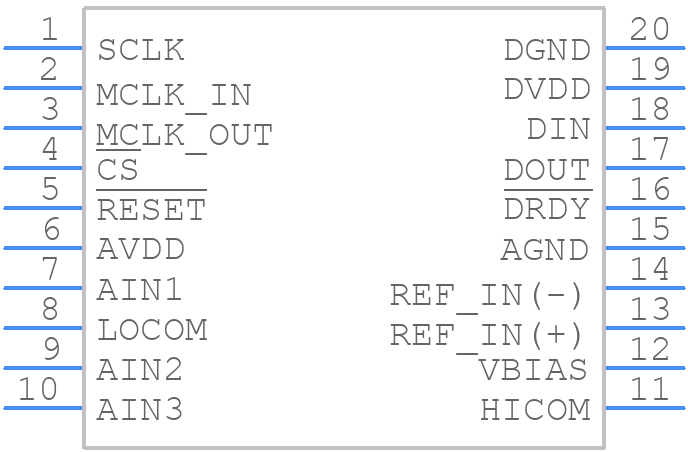

AD7707BRZ - Analog Devices - PCB symbol
