AD7710AN - Analog Devices

Description: Analog to Digital Converters - ADC CMOS 24-Bit w/ Current Source

Download AD7710AN Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

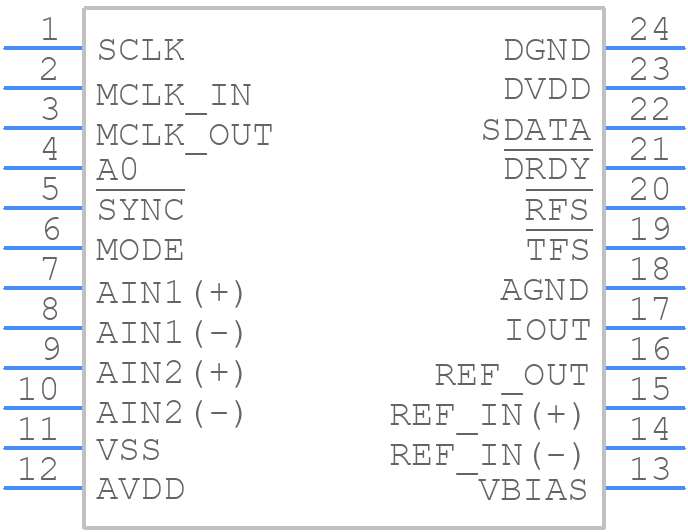

AD7710AN - Analog Devices - PCB symbol
click to zoom
PCB Footprints

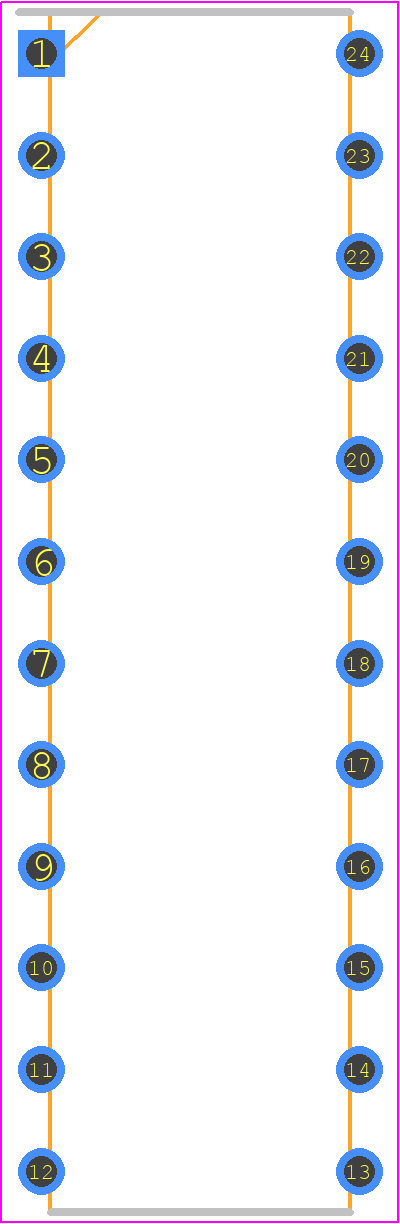

AD7710AN - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - (N-24)PDIP
click to zoom
3D Models
AD7710AN - Analog Devices - 3D model - Dual-In-Line Packages - (N-24)PDIP
click to zoom

AD7710AN Details

  • Manufacturer Part Number:

    AD7710AN

  • Source Url Status Check Date:

    2013-05-01 14:56:19.968

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Package Description:

    0.300 INCH, PLASTIC, MO-095AG, DIP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    N-24-1

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Analog Input Voltage-Max:

    2.5 V

  • Analog Input Voltage-Min:

    -2.5 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    R-PDIP-T24

  • JESD-609 Code:

    e0

  • Length:

    30.45 mm

  • Linearity Error-Max (EL):

    0.003%

  • Negative Supply Voltage-Nom:

    -5 V

  • Number of Analog In Channels:

    2

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, OFFSET BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP24,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    5.33 mm

  • Supply Current-Max:

    3 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Lead (Sn85Pb15)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm
