AD7710AR-REEL7 - Analog Devices

Description: IC ADC 24BIT DIFF INP 24-SOIC

Download AD7710AR-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

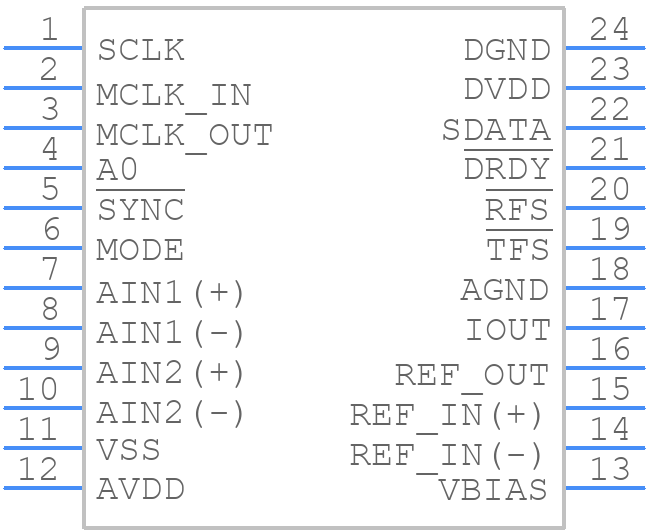

AD7710AR-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7710AR-REEL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 24-Lead Standard Small Outline Package [SOIC] Wide Body (R-24)
click to zoom
3D Models
AD7710AR-REEL7 - Analog Devices - 3D model - Small Outline Packages - 24-Lead Standard Small Outline Package [SOIC] Wide Body (R-24)
click to zoom

AD7710AR-REEL7 Details

  • Manufacturer Part Number:

    AD7710AR-REEL7

  • Source Url Status Check Date:

    2013-05-01 14:56:19.972

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    MS-013AD, SOIC-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    RW-24

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Analog Input Voltage-Max:

    2.5 V

  • Analog Input Voltage-Min:

    -2.5 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e0

  • Length:

    15.4 mm

  • Linearity Error-Max (EL):

    0.003%

  • Moisture Sensitivity Level:

    3

  • Negative Supply Voltage-Nom:

    -5 V

  • Number of Analog In Channels:

    2

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, OFFSET BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP24,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    240

  • Qualification Status:

    Not Qualified

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    3 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Lead (Sn85Pb15)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    7.5 mm

AD7710AR-REEL7 Frequently Asked Questions (FAQs)

  • The AD7710AR-REEL7 is a sensitive analog device, and its performance can be affected by the PCB layout and placement. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources.
  • To minimize noise and EMI sensitivity, it is recommended to use a shielded enclosure, keep the device away from high-frequency sources, and use a low-pass filter on the analog inputs. Additionally, using a ground plane and decoupling capacitors can help to reduce noise and EMI.
  • The maximum sampling rate of the AD7710AR-REEL7 is 100 kSPS, but this can be affected by the clock frequency, filter settings, and other factors. It is recommended to consult the datasheet and application notes for more information on achieving the maximum sampling rate.
  • Yes, the AD7710AR-REEL7 can be used in a multi-channel application, but it requires external multiplexing and demultiplexing circuitry. The device has a single analog-to-digital converter (ADC) core, and multiple channels can be multiplexed onto the ADC input using an external multiplexer.
  • The AD7710AR-REEL7 has an internal calibration circuit that can be used to calibrate the device. The calibration process involves applying a known input voltage and adjusting the internal calibration registers to achieve the desired accuracy. The datasheet provides more information on the calibration process and the required calibration registers.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7710AR-REEL7 Overview

Use the download button to access the AD7710AR-REEL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD771, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
