AD7710ARZ-REEL7 - Analog Devices

Description: Analog Devices AD7710ARZ-REEL7, 24 bit Serial ADC, Differential Input, 24-Pin SOIC

Download AD7710ARZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

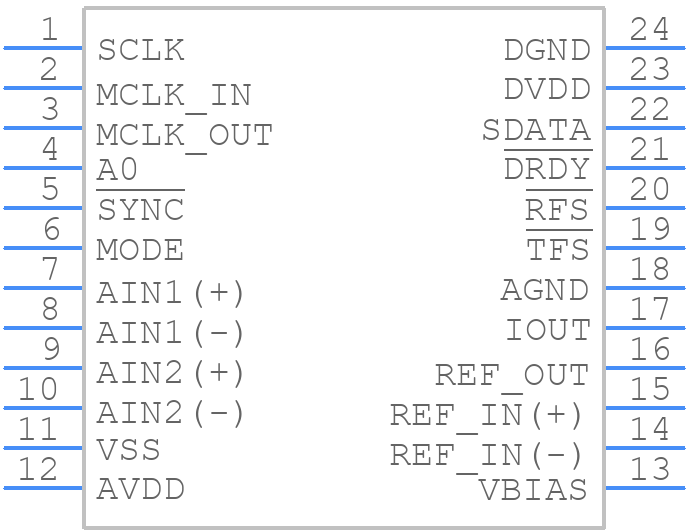

Symbol
AD7710ARZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7710ARZ-REEL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - R-24_11
click to zoom
3D Models
AD7710ARZ-REEL7 - Analog Devices - 3D model - Small Outline Packages - R-24_11
click to zoom

AD7710ARZ-REEL7 Details

  • Manufacturer Part Number:

    AD7710ARZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    LEAD FREE, MS-013AD, SOIC-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    RW-24

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    2.5 V

  • Analog Input Voltage-Min:

    -2.5 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    15.4 mm

  • Linearity Error-Max (EL):

    0.003%

  • Moisture Sensitivity Level:

    3

  • Negative Supply Voltage-Nom:

    -5 V

  • Number of Analog In Channels:

    2

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, OFFSET BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP24,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    3 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

AD7710ARZ-REEL7 Frequently Asked Questions (FAQs)

  • The AD7710ARZ-REEL7 is a sensitive analog device, and proper layout and placement are crucial. It's recommended to keep the device away from high-frequency sources, use a solid ground plane, and keep analog and digital traces separate. Additionally, decoupling capacitors should be placed close to the device, and the analog and digital power supplies should be separated.
  • The AD7710ARZ-REEL7 requires calibration to ensure accurate measurements. The recommended calibration procedure involves applying a known input voltage, measuring the output code, and adjusting the gain and offset registers accordingly. The device also has a built-in calibration mode that can be used to simplify the calibration process.
  • The AD7710ARZ-REEL7 is sensitive to temperature changes, which can affect its performance and accuracy. The device has a specified operating temperature range of -40°C to 85°C, and it's recommended to keep it within this range to ensure optimal performance. Thermal considerations include providing adequate heat dissipation, avoiding thermal gradients, and using thermal pads or heat sinks if necessary.
  • The AD7710ARZ-REEL7 has a serial interface that can be connected to a microcontroller or digital signal processor. The recommended interface protocol is SPI, and the device requires a clock signal, chip select signal, and data lines. The interface timing and protocol should be carefully considered to ensure reliable data transfer.
  • The AD7710ARZ-REEL7 is a sensitive analog device that can be affected by electromagnetic interference (EMI). To ensure EMC, it's recommended to use shielding, filtering, and grounding techniques to minimize EMI. Additionally, the device should be placed in a shielded enclosure, and cables should be shielded and routed away from high-frequency sources.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7710ARZ-REEL7 Overview

Use the download button to access the AD7710ARZ-REEL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD771, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
