AD7710ARZ - Analog Devices

Description: Analog to Digital Converters - ADC 24 BIT SIGMA DELTA ADC IC

Download AD7710ARZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

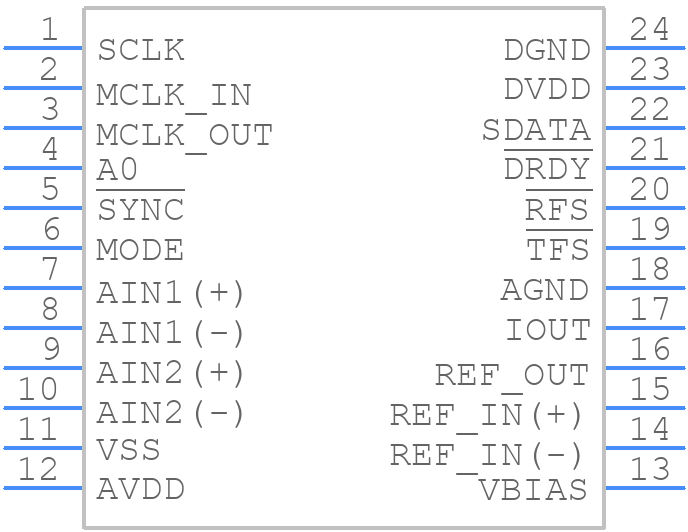

Symbol
AD7710ARZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7710ARZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - (R-24)_1
click to zoom
3D Models
AD7710ARZ - Analog Devices - 3D model - Small Outline Packages - (R-24)_1
click to zoom

AD7710ARZ Details

  • Manufacturer Part Number:

    AD7710ARZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    LEAD FREE, MS-013AD, SOIC-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    RW-24

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    2.5 V

  • Analog Input Voltage-Min:

    -2.5 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    15.4 mm

  • Linearity Error-Max (EL):

    0.003%

  • Moisture Sensitivity Level:

    3

  • Negative Supply Voltage-Nom:

    -5 V

  • Number of Analog In Channels:

    2

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, OFFSET BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP24,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    3 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

AD7710ARZ Frequently Asked Questions (FAQs)

  • A good layout and grounding technique is crucial for the AD7710ARZ. It is recommended to use a multi-layer PCB with a solid ground plane, and to keep the analog and digital grounds separate. The AD7710ARZ should be placed close to the analog signal sources, and the analog and digital signals should be routed separately to minimize noise coupling.
  • To optimize the performance of the AD7710ARZ in noisy environments, it is recommended to use a low-pass filter at the input, use a high-quality power supply, and to minimize the length of the analog signal traces. Additionally, the AD7710ARZ has a built-in 50 Hz/60 Hz rejection filter that can be enabled to reduce noise.
  • The maximum sampling rate of the AD7710ARZ is 100 kSPS (kilosamples per second). However, the actual sampling rate may be limited by the system's clock frequency and the settling time of the analog input signal.
  • The AD7710ARZ has a built-in calibration mode that can be enabled by setting the CAL pin high. During calibration, the device measures its internal voltage reference and adjusts its gain and offset to ensure accurate conversions. The calibration process typically takes around 10 ms.
  • The power consumption of the AD7710ARZ depends on the operating mode and the clock frequency. In normal operation, the device consumes around 15 mW (milliwatts) at 5 V supply voltage. In power-down mode, the power consumption is reduced to around 10 μW (microwatts).
