AD7710SQ - Analog Devices

AD7710SQ Details

• Manufacturer Part Number:

  AD7710SQ

• Source Url Status Check Date:

  2013-05-01 14:56:19.975

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Part Life Cycle Code:

  Not Recommended

• Part Package Code:

  DIP

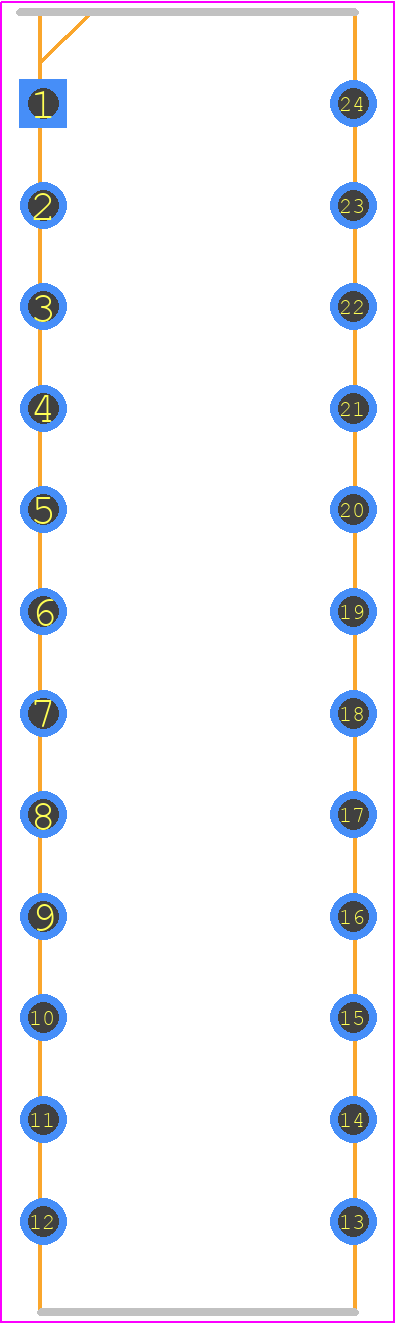

• Package Description:

  0.300 INCH, HERMETIC SEALED, CERDIP-24

• Pin Count:

  24

• Manufacturer Package Code:

  Q-24-1

• Country Of Origin:

  Philippines

• ECCN Code:

  3A001.A.2.C

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  3

• Analog Input Voltage-Max:

  2.5 V

• Analog Input Voltage-Min:

  -2.5 V

• Converter Type:

  ADC, DELTA-SIGMA

• JESD-30 Code:

  R-GDIP-T24

• JESD-609 Code:

  e0

• Length:

  31.75 mm

• Linearity Error-Max (EL):

  0.003%

• Negative Supply Voltage-Nom:

  -5 V

• Number of Analog In Channels:

  2

• Number of Bits:

  24

• Number of Functions:

  1

• Number of Terminals:

  24

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Output Bit Code:

  BINARY, OFFSET BINARY

• Output Format:

  SERIAL

• Package Body Material:

  CERAMIC, GLASS-SEALED

• Package Code:

  DIP

• Package Equivalence Code:

  DIP24,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Qualification Status:

  Not Qualified

• Sample and Hold / Track and Hold:

  SAMPLE

• Seated Height-Max:

  6.22 mm

• Supply Current-Max:

  3 mA

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  NO

• Technology:

  CMOS

• Temperature Grade:

  MILITARY

• Terminal Finish:

  Tin/Lead (Sn/Pb)

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Width:

  15.24 mm
