AD7713ARZ - Analog Devices

Description: AD7713ARZ, 24 bit ADC Differential, Serial, 24-Pin SOIC W

Download AD7713ARZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

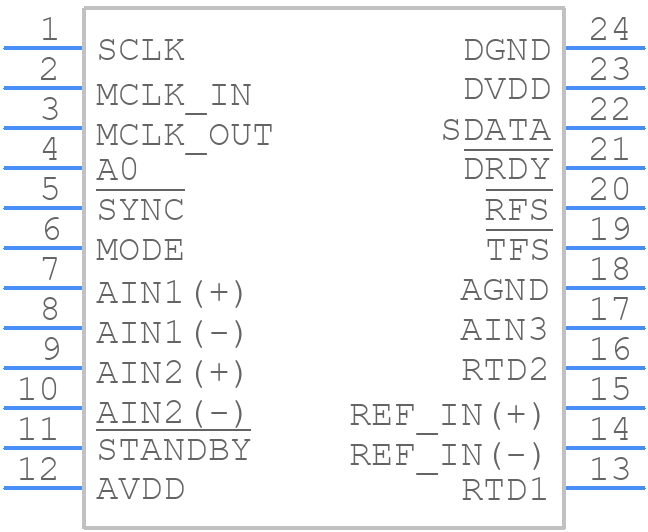

AD7713ARZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7713ARZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RW-24 (SOIC)
click to zoom
3D Models
AD7713ARZ - Analog Devices - 3D model - Small Outline Packages - RW-24 (SOIC)
click to zoom

AD7713ARZ Details

  • Manufacturer Part Number:

    AD7713ARZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    RW-24

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    10 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    15.4 mm

  • Linearity Error-Max (EL):

    0.0015%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    3

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP24,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.0039 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    0.7 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

AD7713ARZ Frequently Asked Questions (FAQs)

  • The AD7713ARZ requires careful layout and placement to minimize noise and ensure accurate conversions. It is recommended to place the device close to the analog signal sources, use a solid ground plane, and keep the analog and digital signals separate. Additionally, decoupling capacitors should be placed close to the device's power pins.
  • To optimize the AD7713ARZ's performance, it is essential to understand the specific requirements of your application. This includes selecting the correct gain and offset settings, choosing the right clock frequency, and optimizing the analog front-end circuitry. Additionally, it is crucial to consider the noise performance, linearity, and accuracy requirements of your application.
  • Common pitfalls to avoid when using the AD7713ARZ include incorrect pin connections, inadequate power supply decoupling, and insufficient analog input filtering. Additionally, failing to consider the device's noise performance, linearity, and accuracy limitations can lead to suboptimal performance.
  • To troubleshoot issues with the AD7713ARZ, start by verifying the power supply and clock connections. Check the analog input signals and ensure they are within the specified range. Use an oscilloscope to verify the analog input signals and the device's output. If issues persist, consult the datasheet and application notes for guidance.
  • The AD7713ARZ has a maximum junction temperature of 150°C. To ensure reliable operation, it is essential to consider thermal management, especially in high-temperature environments. This includes providing adequate heat sinking, using thermal interface materials, and ensuring good airflow.
