AD7714ANZ-5 - Analog Devices

Description: AD7714ANZ-5, 24 bit ADC Differential, SPI, 24-Pin PDIP

Download AD7714ANZ-5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

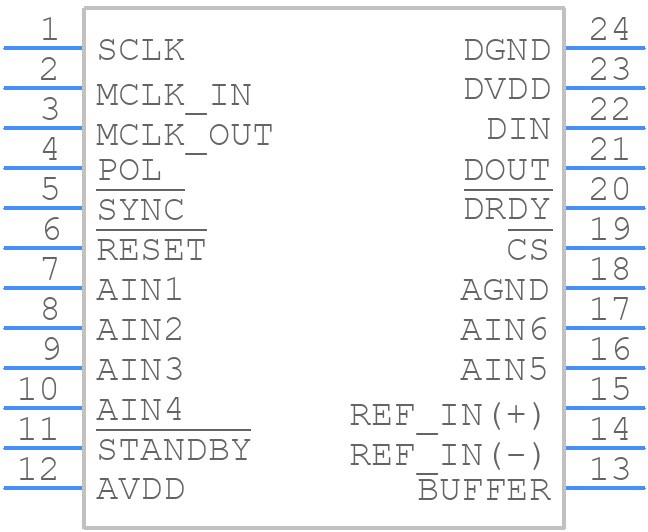

AD7714ANZ-5 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7714ANZ-5 - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N-24-1
click to zoom
3D Models
AD7714ANZ-5 - Analog Devices - 3D model - Dual-In-Line Packages - N-24-1
click to zoom

AD7714ANZ-5 Details

  • Manufacturer Part Number:

    AD7714ANZ-5

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Package Description:

    0.300 INCH, PLASTIC, DIP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    N-24-1

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    2.5 V

  • Analog Input Voltage-Min:

    -2.5 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    R-PDIP-T24

  • JESD-609 Code:

    e3

  • Length:

    31.165 mm

  • Linearity Error-Max (EL):

    0.0015%

  • Number of Analog In Channels:

    5

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, OFFSET BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP24,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.33 mm

  • Supply Current-Max:

    1.1 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

AD7714ANZ-5 Frequently Asked Questions (FAQs)

  • A good layout and grounding technique is crucial for the AD7714ANZ-5. It is recommended to use a multi-layer PCB with a solid ground plane, and to keep the analog and digital grounds separate. The AD7714ANZ-5 should be placed close to the analog signal sources, and the analog and digital signals should be routed separately to minimize noise coupling.
  • To optimize the performance of the AD7714ANZ-5 in noisy environments, it is recommended to use a low-pass filter at the input, use a high-quality power supply, and to minimize the length of the analog signal traces. Additionally, the AD7714ANZ-5 has a built-in 50 Hz/60 Hz rejection filter that can be enabled to reduce noise.
  • The maximum sampling rate of the AD7714ANZ-5 is 100 kSPS (kilosamples per second). However, the actual sampling rate may be limited by the system's clock frequency and the settling time of the analog input signal.
  • The AD7714ANZ-5 has a built-in calibration feature that can be used to calibrate the device. The calibration process involves applying a known input voltage to the device and then adjusting the internal calibration registers to achieve the desired accuracy. The calibration process can be performed using the device's SPI interface.
  • The power consumption of the AD7714ANZ-5 depends on the operating mode and the clock frequency. In normal operation, the device consumes around 35 mW of power. In power-down mode, the device consumes around 10 μW of power.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7714ANZ-5 Overview

Use the download button to access the AD7714ANZ-5 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD771, or try a keyword search, such as Analog to Digital Converters
