AD7719BRUZ - Analog Devices

Description: Analog Devices AD7719BRUZ, 24 bit Serial ADC, Dual Differential Input, 28-Pin TSSOP

Download AD7719BRUZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

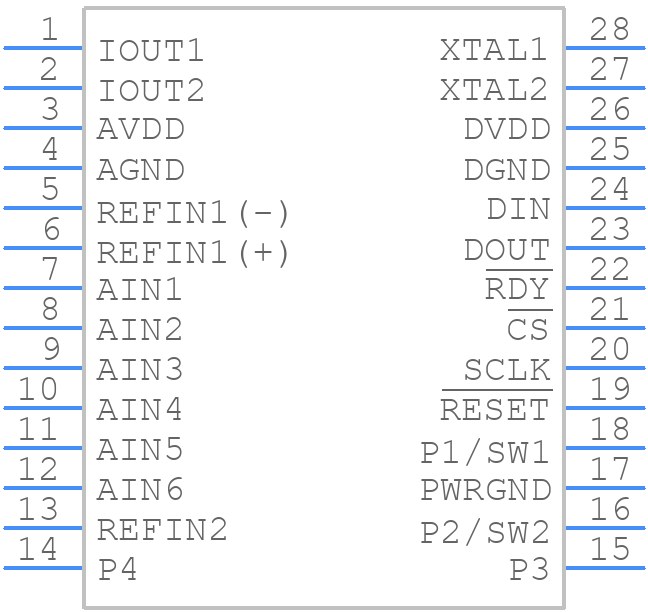

Symbol
AD7719BRUZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7719BRUZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-28
click to zoom
3D Models
AD7719BRUZ - Analog Devices - 3D model - Small Outline Packages - RU-28
click to zoom

AD7719BRUZ Details

  • Manufacturer Part Number:

    AD7719BRUZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    MS-153AE, TSSOP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    RU-28

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    2.56 V

  • Analog Input Voltage-Min:

    -2.56 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    9.7 mm

  • Linearity Error-Max (EL):

    0.001%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    6

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, OFFSET BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP28,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    1.1 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    4.4 mm

AD7719BRUZ Frequently Asked Questions (FAQs)

  • The AD7719BRUZ requires careful layout and placement to ensure optimal performance. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources.
  • To optimize the AD7719BRUZ for low noise performance, ensure that the device is operated within its recommended operating conditions, use a low-noise power supply, and minimize digital noise coupling into the analog circuitry. Additionally, use a low-pass filter on the analog input signals and ensure that the analog input signals are properly terminated.
  • The maximum sampling rate of the AD7719BRUZ is 100 kSPS (kilosamples per second). However, the actual sampling rate may be limited by the system's clock frequency and the device's settling time.
  • Yes, the AD7719BRUZ can be used with an external reference voltage. The device has a dedicated reference input pin (REFIN) that allows an external reference voltage to be applied. This can be useful in applications where a higher accuracy or a different reference voltage is required.
  • The AD7719BRUZ has an internal calibration circuit that allows for self-calibration. The device can be calibrated by applying a known input voltage and then using the calibration registers to adjust the device's gain and offset. The calibration process can be performed at power-up or during system initialization.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7719BRUZ Overview

Use the download button to access the AD7719BRUZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD771, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
