AD7729ARUZ - Analog Devices

Description: AD7729ARUZ, 15 bit ADC Dual, Differential,, Serial, 28-Pin TSSOP

Download AD7729ARUZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

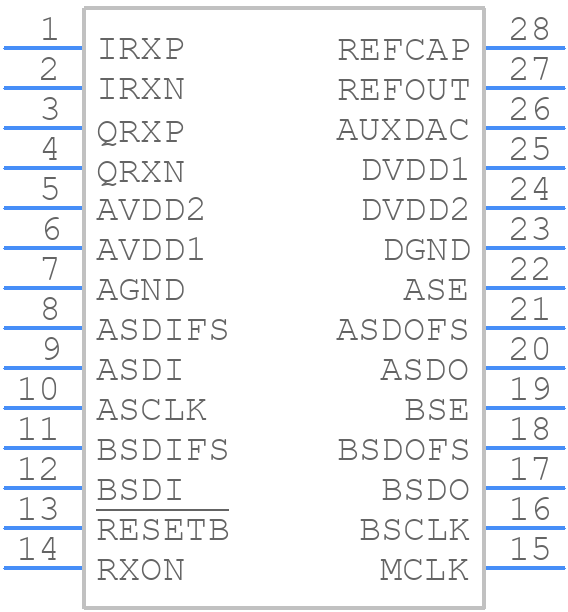

AD7729ARUZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7729ARUZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-28 (TSSOP)_1
click to zoom
3D Models
AD7729ARUZ - Analog Devices - 3D model - Small Outline Packages - RU-28 (TSSOP)_1
click to zoom

AD7729ARUZ Details

  • Manufacturer Part Number:

    AD7729ARUZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Package Description:

    TSSOP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    RU-28

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    9.7 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    3.3 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

AD7729ARUZ Frequently Asked Questions (FAQs)

  • The AD7729ARUZ is a high-speed, high-precision ADC, and as such, it requires careful layout and placement to achieve optimal performance. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the analog and digital grounds separate, using a solid ground plane, and minimizing noise coupling between the analog and digital sections.
  • To optimize the AD7729ARUZ for low power consumption, it is recommended to use the lowest possible clock frequency, reduce the input voltage range, and use the power-down mode when not in use. Additionally, the ADC can be operated in a low-power mode by reducing the sampling rate or using the sleep mode.
  • The AD7729ARUZ requires a low-impedance, low-noise input signal to achieve optimal performance. It is recommended to use a low-pass filter or an anti-aliasing filter to remove high-frequency noise and to buffer the input signal using an op-amp or a buffer amplifier to reduce the source impedance.
  • The AD7729ARUZ outputs digital data in a 16-bit or 18-bit format, depending on the mode of operation. The digital output data can be handled using a microcontroller or an FPGA, and it is recommended to use a FIFO or a buffer to handle the data transfer and to ensure data integrity.
  • The AD7729ARUZ requires a high-quality clock source to achieve optimal performance. It is recommended to use a crystal oscillator or a high-quality clock generator, and to ensure that the clock signal is clean and free of noise and jitter.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7729ARUZ Overview

Use the download button to access the AD7729ARUZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD772, or try a keyword search, such as Other Signal Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
