AD7734BRU - Analog Devices

Description: AD7734BRU, 24-Bit Analogue to Digital Converter, Differential, Serial, 28-Pin TSSOP

Download AD7734BRU Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

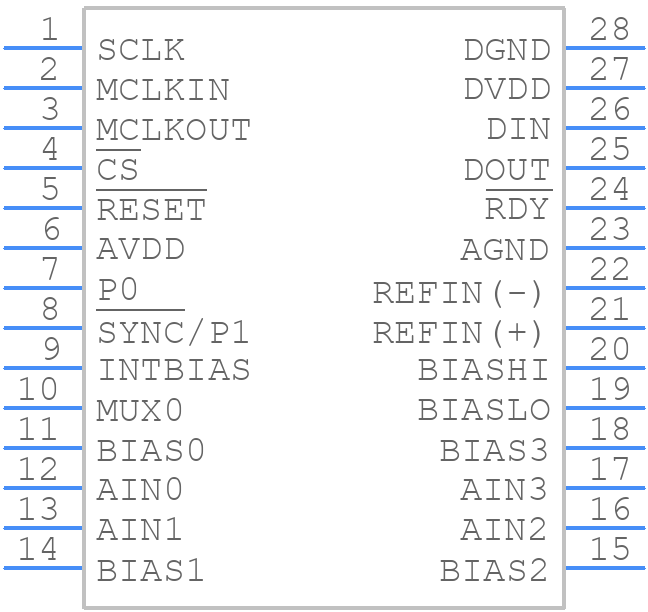

AD7734BRU - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7734BRU - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-28
click to zoom
3D Models
AD7734BRU - Analog Devices - 3D model - Small Outline Packages - RU-28
click to zoom

AD7734BRU Details

  • Manufacturer Part Number:

    AD7734BRU

  • Source Url Status Check Date:

    2013-05-01 14:56:20.227

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Package Description:

    MO-153AE, TSSOP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    RU-28

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Analog Input Voltage-Max:

    10 V

  • Analog Input Voltage-Min:

    -10 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e0

  • Length:

    9.7 mm

  • Linearity Error-Max (EL):

    0.0045%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    4

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP28,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    240

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.0154 MHz

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    15.9 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

AD7734BRU Frequently Asked Questions (FAQs)

  • The AD7734BRU requires careful layout and placement to minimize noise and ensure accurate conversions. It is recommended to place the device close to the analog signal sources, use a solid ground plane, and keep the analog and digital signals separate. Additionally, decoupling capacitors should be placed close to the device's power pins.
  • To optimize the AD7734BRU's performance, it is essential to understand the specific requirements of your application. This includes selecting the correct gain and offset settings, choosing the right clock frequency, and optimizing the analog front-end circuitry. Additionally, it is crucial to ensure that the device is properly calibrated and that the analog input signals are properly filtered and conditioned.
  • Common pitfalls to avoid when using the AD7734BRU include incorrect pin connections, inadequate power supply decoupling, and insufficient analog input signal conditioning. Additionally, failing to properly calibrate the device, using incorrect gain and offset settings, and neglecting to filter out noise and interference can also lead to poor performance.
  • To troubleshoot issues with the AD7734BRU, start by verifying that the device is properly powered and that the analog input signals are within the specified range. Check the device's output data for errors and ensure that the clock frequency is correct. If issues persist, consult the datasheet and application notes for guidance, and consider using debugging tools such as oscilloscopes and logic analyzers.
  • The AD7734BRU is a high-performance analog-to-digital converter that can generate heat during operation. To ensure reliable operation, it is essential to provide adequate thermal management, such as using a heat sink or thermal pad, and ensuring good airflow around the device. Additionally, it is crucial to operate the device within its specified temperature range.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7734BRU Overview

Use the download button to access the AD7734BRU schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD773, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
