AD7734BRUZ-REEL7 - Analog Devices

Description: Analog to Digital Converters - ADC 4 Single ended Ch 10V input 24B SD ADC

Download AD7734BRUZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

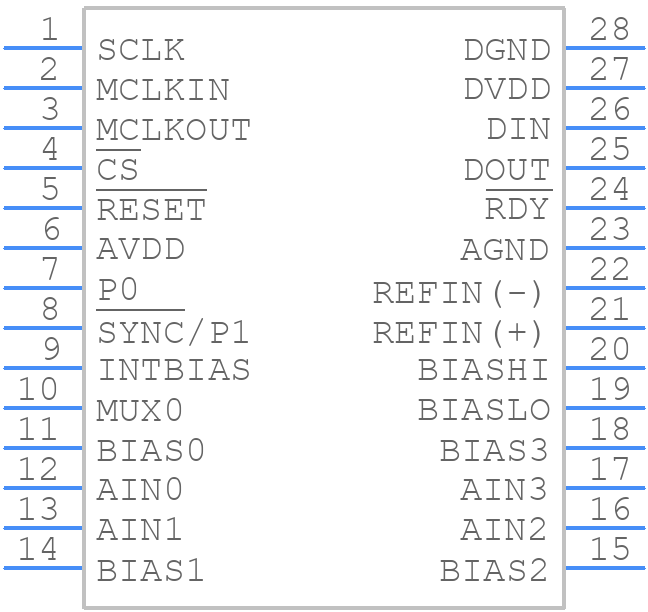

AD7734BRUZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7734BRUZ-REEL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-28
click to zoom
3D Models
AD7734BRUZ-REEL7 - Analog Devices - 3D model - Small Outline Packages - RU-28
click to zoom

AD7734BRUZ-REEL7 Details

  • Manufacturer Part Number:

    AD7734BRUZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Package Description:

    TSSOP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    RU-28

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    10 V

  • Analog Input Voltage-Min:

    -10 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    9.7 mm

  • Linearity Error-Max (EL):

    0.0045%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    4

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.0154 MHz

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    15.9 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

AD7734BRUZ-REEL7 Frequently Asked Questions (FAQs)

  • The AD7734BRUZ-REEL7 is a high-precision ADC, and its performance can be affected by the PCB layout and component placement. It is recommended to follow a star-grounding scheme, keep analog and digital grounds separate, and place the ADC close to the analog signal sources. Additionally, decoupling capacitors should be placed as close as possible to the ADC's power pins.
  • The AD7734BRUZ-REEL7 has an internal calibration mechanism, but it may require additional external calibration to achieve optimal performance. This can be done by applying a known input voltage and adjusting the ADC's offset and gain registers to match the expected output code. The calibration process may need to be repeated at different temperatures and input ranges to ensure optimal performance across the entire operating range.
  • The recommended power-up sequence for the AD7734BRUZ-REEL7 is to first apply the analog power supply (AVDD), followed by the digital power supply (DVDD), and finally the clock signal. This ensures that the ADC's internal biasing and reference circuits are properly initialized before the clock signal is applied.
  • The AD7734BRUZ-REEL7's digital output data should be handled carefully to ensure accurate and reliable conversion results. This includes using a suitable interface protocol (e.g., SPI or parallel), ensuring proper data synchronization, and using a reliable data transmission mechanism to prevent data corruption or loss.
  • The AD7734BRUZ-REEL7 is a high-performance ADC that can generate heat during operation. To prevent overheating, it is recommended to provide adequate thermal management, such as using a heat sink or thermal pad, and ensuring good airflow around the device. The operating temperature range should also be carefully considered to ensure reliable operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7734BRUZ-REEL7 Overview

Use the download button to access the AD7734BRUZ-REEL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD773, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
