AD7738BRUZ - Analog Devices

Description: AD7738BRUZ, 24 bit ADC Differential, SPI, 28-Pin TSSOP

Download AD7738BRUZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

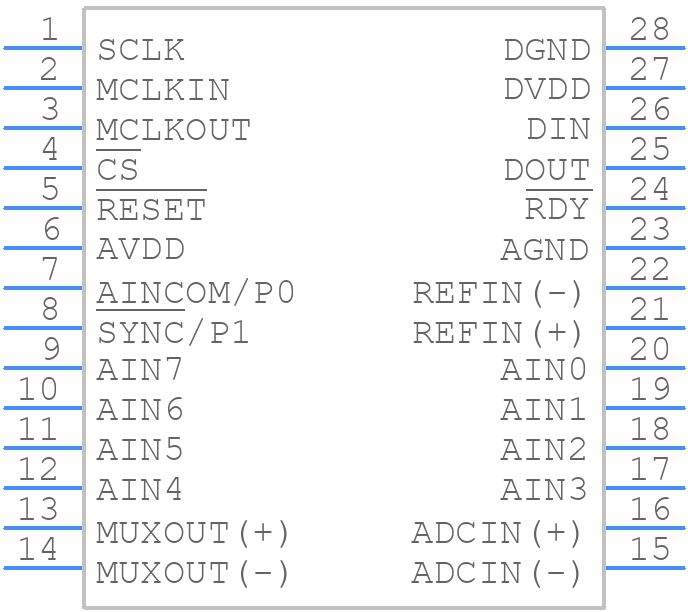

AD7738BRUZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7738BRUZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-28 (TSSOP)-1
click to zoom
3D Models
AD7738BRUZ - Analog Devices - 3D model - Small Outline Packages - RU-28 (TSSOP)-1
click to zoom

AD7738BRUZ Details

  • Manufacturer Part Number:

    AD7738BRUZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    MO-153AE, TSSOP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    RU-28

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    2.9 V

  • Analog Input Voltage-Min:

    -2.9 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    9.7 mm

  • Linearity Error-Max (EL):

    0.0015%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    8

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    16 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

AD7738BRUZ Frequently Asked Questions (FAQs)

  • The AD7738BRUZ requires careful layout and placement to minimize noise and ensure accurate conversions. A recommended layout is to place the device near the analog signal sources, use a solid ground plane, and keep the analog and digital signals separate. Additionally, decoupling capacitors should be placed close to the device's power pins.
  • To optimize the AD7738BRUZ's performance, it's essential to understand the specific requirements of your application. This includes selecting the correct gain and offset settings, choosing the right clock frequency, and optimizing the analog front-end circuitry. Additionally, consider using the device's built-in calibration features and adjusting the PGA gain to minimize noise and maximize signal-to-noise ratio.
  • The AD7738BRUZ requires a clean and stable power supply to ensure accurate conversions. Key considerations include using a low-noise power supply, decoupling the power pins with capacitors, and ensuring that the power supply voltage is within the recommended range. Additionally, consider using a voltage regulator to regulate the power supply voltage.
  • Common issues with the AD7738BRUZ include noise, inaccurate conversions, and communication errors. To troubleshoot these issues, start by verifying the power supply voltage, checking the analog signal integrity, and ensuring that the device is properly configured. Use the device's built-in diagnostic features, such as the internal diagnostic register, to help identify the root cause of the issue.
  • The AD7738BRUZ is sensitive to temperature changes, which can affect its performance and accuracy. Thermal considerations include ensuring good airflow around the device, using a heat sink if necessary, and avoiding high-temperature storage or operation. Additionally, consider using thermal interface materials to improve heat transfer between the device and the PCB.
