AD7747ARUZ - Analog Devices

Description: AD7747ARUZ, Capacitance to Digital Converter, 24bit- 16-Pin TSSOP

Download AD7747ARUZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

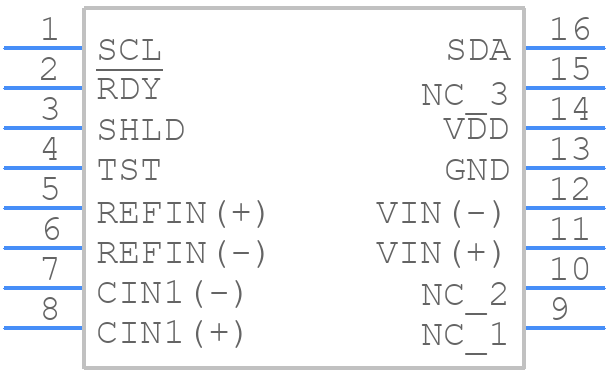

AD7747ARUZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7747ARUZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - AD7747ARUZ-1
click to zoom
3D Models
AD7747ARUZ - Analog Devices - 3D model - Small Outline Packages - AD7747ARUZ-1
click to zoom

AD7747ARUZ Details

  • Manufacturer Part Number:

    AD7747ARUZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    LEAD FREE, MO-153AB, TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RU-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Converter Type:

    D/A CONVERTER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.01%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

AD7747ARUZ Frequently Asked Questions (FAQs)

  • The AD7747ARUZ requires careful layout and placement to ensure optimal performance. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources.
  • The AD7747ARUZ has an internal calibration mechanism that can be initiated by setting the CAL pin high. The device will then perform a self-calibration sequence. Additionally, the user can also perform an external calibration by applying a known voltage to the input pins and adjusting the offset and gain registers accordingly.
  • The AD7747ARUZ has a maximum sampling rate of 100 kSPS. However, the actual sampling rate may be limited by the system clock frequency, the conversion mode, and the filter settings.
  • Yes, the AD7747ARUZ can be used in a multiplexed configuration. The device has a built-in multiplexer that allows multiple channels to be connected to the ADC. The user can select the desired channel using the MUX[2:0] pins.
  • To minimize noise and interference, it is recommended to use a low-pass filter at the input, keep the analog signal paths as short as possible, and use a solid ground plane. Additionally, the AD7747ARUZ has a built-in digital filter that can be enabled to reduce noise and interference.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7747ARUZ Overview

Use the download button to access the AD7747ARUZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD774, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
