AD7762BSVZ-REEL - Analog Devices

Description: Analog to Digital Converters - ADC Parallel IF 625kSPS 24-Bit

Download AD7762BSVZ-REEL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AD7762BSVZ-REEL - Analog Devices - PCB symbol
click to zoom
PCB Footprints

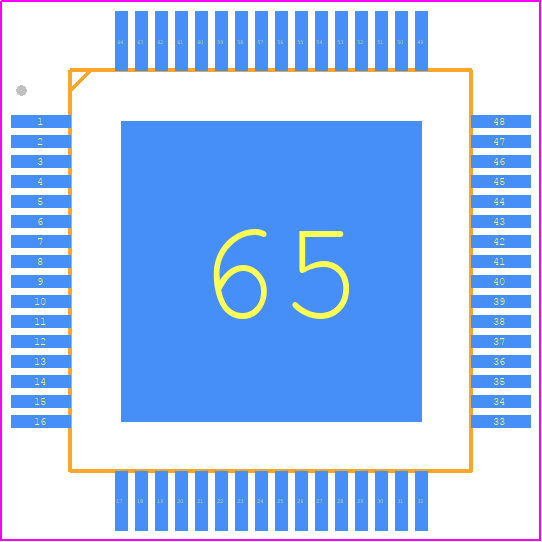

AD7762BSVZ-REEL - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - 64-Lead Thin Quad Flat Package, Exposed Pad [TQFP_EP] (SV-64-4)
click to zoom
3D Models
AD7762BSVZ-REEL - Analog Devices - 3D model - Quad Flat Packages - 64-Lead Thin Quad Flat Package, Exposed Pad [TQFP_EP] (SV-64-4)
click to zoom

AD7762BSVZ-REEL Details

  • Manufacturer Part Number:

    AD7762BSVZ-REEL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Package Description:

    TQFP-64

  • Pin Count:

    64

  • Manufacturer Package Code:

    SV-64-4

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    2 V

  • Analog Input Voltage-Min:

    -2 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    S-PQFP-G64

  • JESD-609 Code:

    e3

  • Length:

    10 mm

  • Linearity Error-Max (EL):

    0.014%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    1

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    64

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    PARALLEL, WORD

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLFQFP

  • Package Equivalence Code:

    TQFP64,.47SQ

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.625 MHz

  • Seated Height-Max:

    1.6 mm

  • Supply Current-Max:

    42 mA

  • Supply Voltage-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    10 mm

AD7762BSVZ-REEL Frequently Asked Questions (FAQs)

  • The recommended layout and routing for the AD7762BSVZ-REEL can be found in the AD7762 Evaluation Board documentation and the AD7762 Layout and Routing Guidelines document, which provides detailed guidelines for PCB design, component placement, and routing to ensure optimal performance.
  • The AD7762BSVZ-REEL requires a calibration process to ensure accurate performance. The calibration process involves setting the gain and offset registers, which can be done using the AD7762's built-in calibration modes or through external calibration using a microcontroller or other external device. Refer to the AD7762 datasheet and calibration guide for detailed instructions.
  • The maximum sampling rate of the AD7762BSVZ-REEL is 1.024 MSPS (mega-samples per second). However, the actual sampling rate may be limited by the system clock frequency, analog input bandwidth, and other factors. Refer to the AD7762 datasheet for more information on sampling rate limitations.
  • The AD7762BSVZ-REEL is specified to operate from a 2.7V to 5.5V supply voltage. While it may be possible to operate the device at 3.3V, it is not guaranteed to meet all specifications at this voltage. It is recommended to operate the device within the specified voltage range for optimal performance and reliability.
  • The AD7762BSVZ-REEL can be interfaced with a microcontroller using the SPI (Serial Peripheral Interface) or I2C (Inter-Integrated Circuit) interface. The AD7762 datasheet provides detailed information on the interface protocols, pin connections, and register maps. Additionally, Analog Devices provides example code and evaluation software to facilitate interface development.
