AD7762BSVZ footprint, schematic symbol and 3D model by Analog Devices

Symbol

click to zoom

PCB Footprints

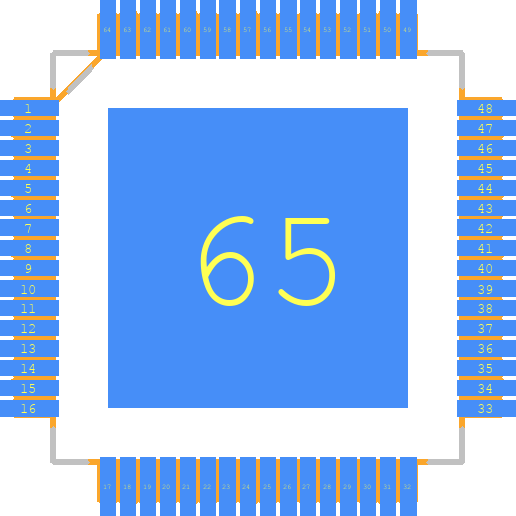

AD7762BSVZ - Analog Devices PCB footprint - Other - Other - QFP50P1200X1200X120-65N

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for AD7762BSVZ
Part Number AD7762BSVZ
Manufacturer Analog Devices
Pin Count 65
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - QFP50P1200X1200X120-65N
Released Date Jan 10, 2017
Last Modified Date Nov 15, 2024 1:35 PM UTC
Pinout / Pin List Click Here (Member Only)

AD7762BSVZ Details

Manufacturer Part Number:
AD7762BSVZ
Brand Name:
Analog Devices Inc
Pbfree Code:
No
Rohs Code:
Yes
Part Life Cycle Code:
Active
Part Package Code:
QFP
Package Description:
TQFP-64
Pin Count:
64
Manufacturer Package Code:
SV-64-4
Country Of Origin:
Philippines
ECCN Code:
EAR99
HTS Code:
8542.39.00.01
Manufacturer:
Analog Devices Inc
YTEOL:
10
Analog Input Voltage-Max:
3.25 V
Analog Input Voltage-Min:
-3.25 V
Converter Type:
A/D CONVERTER
JESD-30 Code:
S-PQFP-G64
JESD-609 Code:
e3
Length:
10 mm
Linearity Error-Max (EL):
0.014%
Moisture Sensitivity Level:
3
Number of Analog In Channels:
1
Number of Bits:
24
Number of Functions:
1
Number of Terminals:
64
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Bit Code:
BINARY
Output Format:
PARALLEL, WORD
Package Body Material:
PLASTIC/EPOXY
Package Code:
HTFQFP
Package Equivalence Code:
TQFP64,.47SQ
Package Shape:
SQUARE
Package Style:
FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Sample Rate:
0.625 MHz
Seated Height-Max:
1.2 mm
Supply Current-Max:
42 mA
Supply Voltage-Nom:
2.5 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
GULL WING
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Width:
10 mm

AD7762BSVZ Frequently Asked Questions (FAQs)

A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the analog and digital signals separate. Also, use a low-ESR capacitor for the AVDD and DVDD pins, and keep the decoupling capacitors close to the pins.
To optimize performance in a noisy environment, use a low-pass filter at the input, use a shielded cable for the analog input, and consider using a common-mode filter. Also, ensure that the AD7762BSVZ is placed away from noisy components and that the PCB is well-shielded.
A low-jitter clock source is recommended, such as a crystal oscillator or a high-quality clock generator. To minimize clock jitter, use a clock source with a low phase noise, and ensure that the clock signal is properly terminated and shielded.
Calibration involves adjusting the offset and gain of the ADC. Use the CAL pin to initiate calibration, and follow the calibration procedure outlined in the datasheet. Also, ensure that the input signal is within the specified range and that the ADC is operated within its specified temperature range.
The recommended power-up sequence is to power up the AVDD pin first, followed by the DVDD pin. Ensure that the power supplies are stable and within the specified voltage range before applying the clock signal.
