AD7763BSVZ - Analog Devices

Description: AD7763BSVZ, 24 bit ADC Differential,, Serial, 64-Pin TQFP EP

Download AD7763BSVZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AD7763BSVZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints

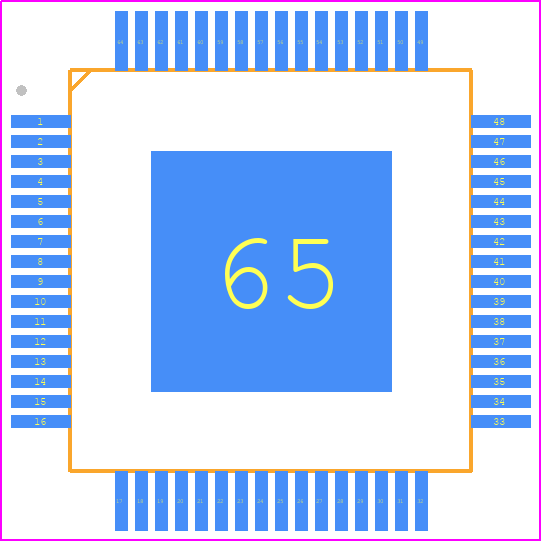

AD7763BSVZ - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - SV-64-2(TQFP)
click to zoom
3D Models
AD7763BSVZ - Analog Devices - 3D model - Quad Flat Packages - SV-64-2(TQFP)
click to zoom

AD7763BSVZ Details

  • Manufacturer Part Number:

    AD7763BSVZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Package Description:

    TQFP-64

  • Pin Count:

    64

  • Manufacturer Package Code:

    SV-64-2

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    2 V

  • Analog Input Voltage-Min:

    -2 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    S-PQFP-G64

  • JESD-609 Code:

    e3

  • Length:

    10 mm

  • Linearity Error-Max (EL):

    0.014%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    1

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    64

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2S COMPLEMENT BINARY

  • Output Format:

    PARALLEL, WORD

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLFQFP

  • Package Equivalence Code:

    TQFP64,.47SQ

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.625 MHz

  • Seated Height-Max:

    1.6 mm

  • Supply Voltage-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    10 mm

AD7763BSVZ Frequently Asked Questions (FAQs)

  • The AD7763BSVZ requires careful layout and routing to achieve optimal performance. It is recommended to follow the layout guidelines provided in the datasheet and application notes, including keeping the analog and digital grounds separate, using a solid ground plane, and minimizing noise coupling.
  • To optimize the performance of the AD7763BSVZ in noisy environments, it is recommended to use proper shielding, filtering, and grounding techniques. Additionally, using a low-pass filter on the input signals and ensuring a clean power supply can help to reduce noise and improve performance.
  • The recommended power-up sequence for the AD7763BSVZ is to power up the analog supply (AVDD) first, followed by the digital supply (DVDD), and then the clock signal. This ensures that the analog circuitry is powered up before the digital circuitry, which helps to prevent latch-up and ensures proper operation.
  • The AD7763BSVZ requires calibration to achieve optimal performance. The calibration process involves adjusting the offset and gain of the ADC to match the specific application requirements. The calibration process can be performed using the on-chip calibration registers or through external calibration techniques.
  • The maximum sampling rate of the AD7763BSVZ is 128 kSPS. However, the actual sampling rate may be limited by the system clock frequency, the input signal bandwidth, and the desired signal-to-noise ratio (SNR).
