AD7765BRUZ - Analog Devices

Description: Analog Devices AD7765BRUZ, 24 bit Serial ADC, Differential Input, 28-Pin TSSOP

Download AD7765BRUZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

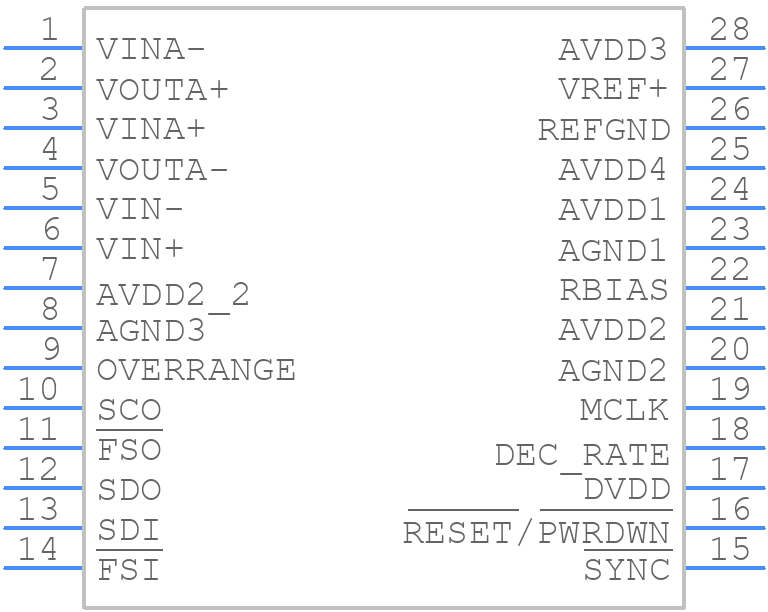

AD7765BRUZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7765BRUZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - (RU-28)
click to zoom
3D Models
AD7765BRUZ - Analog Devices - 3D model - Small Outline Packages - (RU-28)
click to zoom

AD7765BRUZ Details

  • Manufacturer Part Number:

    AD7765BRUZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    RU-28

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    3.2768 V

  • Analog Input Voltage-Min:

    -3.2768 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    9.7 mm

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP28,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.156 MHz

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    5 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

AD7765BRUZ Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the analog and digital signals separate. Also, use a low-ESR capacitor for the AVDD and DVDD pins, and keep the decoupling capacitors close to the pins.
  • To optimize the AD7765BRUZ for low-power operation, use the lowest possible clock frequency, disable the internal reference, and use the power-down mode when not in use. Also, consider using a lower voltage supply and optimizing the analog input range to reduce power consumption.
  • The recommended calibration procedure for the AD7765BRUZ involves a full-scale calibration, followed by a zero-scale calibration. The full-scale calibration involves applying a full-scale input voltage and adjusting the offset and gain registers to achieve the desired output code. The zero-scale calibration involves applying a zero-scale input voltage and adjusting the offset register to achieve the desired output code.
  • The AD7765BRUZ's digital output data is in a 24-bit twos-complement format. To handle the data, you can use a microcontroller or FPGA to read the data and perform any necessary processing, such as scaling and filtering. You can also use a dedicated ADC interface IC to simplify the data handling process.
  • To synchronize multiple AD7765BRUZ devices, you can use a common clock source and synchronize the conversion cycles of each device. You can also use a master-slave configuration, where one device acts as the master and the others act as slaves, to ensure that all devices are synchronized.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

AD7765BRUZ Overview

Use the download button to access the AD7765BRUZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD776, or try a keyword search, such as Analog to Digital Converters
