AD7766BRUZ-1 - Analog Devices

Description: Analog Devices AD7766BRUZ-1, 24 bit Serial ADC Differential Input, 16-Pin TSSOP

Download AD7766BRUZ-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

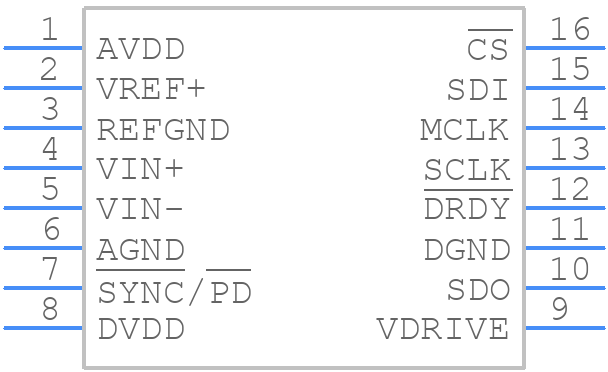

AD7766BRUZ-1 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7766BRUZ-1 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-16 (TSSOP)
click to zoom
3D Models
AD7766BRUZ-1 - Analog Devices - 3D model - Small Outline Packages - RU-16 (TSSOP)
click to zoom

AD7766BRUZ-1 Details

  • Manufacturer Part Number:

    AD7766BRUZ-1

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    ROHS COMPLIANT, MO-153AB, TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RU-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    5 V

  • Converter Type:

    ADC, PROPRIETARY METHOD

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.0015%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.064 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    1.5 mA

  • Supply Voltage-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

AD7766BRUZ-1 Frequently Asked Questions (FAQs)

  • A good layout and routing practice is crucial for the AD7766BRUZ-1. It is recommended to keep the analog and digital grounds separate, use a solid ground plane, and keep the analog and digital signal traces separate. Additionally, it is recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane. The datasheet provides some guidelines, but it's recommended to consult with an experienced PCB designer for optimal results.
  • To optimize the performance of the AD7766BRUZ-1 in a noisy environment, it is recommended to use a low-pass filter at the input, use a shielded cable, and keep the device away from sources of electromagnetic interference (EMI). Additionally, it is recommended to use a good quality power supply with a low noise output, and to decouple the power supply lines with capacitors. It's also recommended to use a common-mode filter at the input to reduce the effects of electromagnetic interference.
  • The recommended calibration procedure for the AD7766BRUZ-1 involves a full-scale calibration, a zero-scale calibration, and a gain calibration. The full-scale calibration involves applying a full-scale input voltage and adjusting the internal gain to achieve the desired output code. The zero-scale calibration involves applying a zero-scale input voltage and adjusting the internal offset to achieve the desired output code. The gain calibration involves applying a known input voltage and adjusting the internal gain to achieve the desired output code. The datasheet provides more details on the calibration procedure.
  • To troubleshoot common issues with the AD7766BRUZ-1, it is recommended to first check the power supply voltage and ensure it is within the recommended range. Then, check the input signal and ensure it is within the recommended range. Check the output signal and ensure it is not saturated or clipped. Check the gain and offset settings and ensure they are correct. If the issue persists, check the PCB layout and routing for any potential issues. If the issue still persists, consult the datasheet and application notes for more troubleshooting tips.
  • The recommended method for synchronizing multiple AD7766BRUZ-1 devices in a multi-channel application is to use a common clock signal and a common SYNC signal. The SYNC signal can be generated by a single device and distributed to all the other devices. The clock signal can be generated by a single device or by an external clock source. It is recommended to use a low-jitter clock source and to ensure that the clock signal is properly terminated to minimize clock skew.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7766BRUZ-1 Overview

Use the download button to access the AD7766BRUZ-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD776, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
