AD7766BRUZ-2-RL7 - Analog Devices

Description: Single Channel Single ADC SAR 32ksps 24-bit Serial 16-Pin TSSOP T/R

Download AD7766BRUZ-2-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

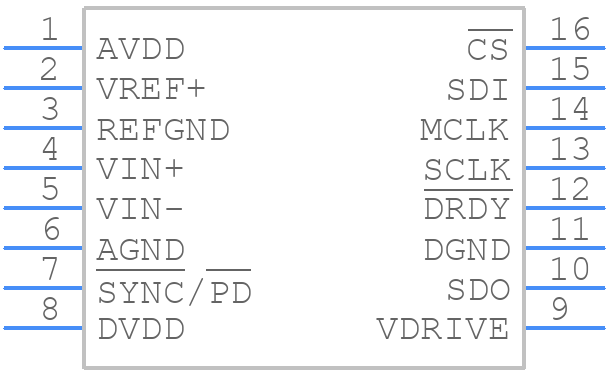

AD7766BRUZ-2-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7766BRUZ-2-RL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-16 (TSSOP)
click to zoom
3D Models
AD7766BRUZ-2-RL7 - Analog Devices - 3D model - Small Outline Packages - RU-16 (TSSOP)
click to zoom

AD7766BRUZ-2-RL7 Details

  • Manufacturer Part Number:

    AD7766BRUZ-2-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    ROHS COMPLIANT, MO-153AB, TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RU-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    5 V

  • Converter Type:

    ADC, PROPRIETARY METHOD

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.0015%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.032 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    1.5 mA

  • Supply Voltage-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

AD7766BRUZ-2-RL7 Frequently Asked Questions (FAQs)

  • A good layout and routing practice is crucial for the AD7766BRUZ-2-RL7. It is recommended to follow a star-grounding scheme, keep analog and digital grounds separate, and use a solid ground plane. Additionally, keep the analog and digital signal traces separate and avoid crossing them over each other. Use a 4-layer PCB with a dedicated power plane and a dedicated ground plane. Refer to the AD7766BRUZ-2-RL7 evaluation board layout as a reference.
  • To optimize the AD7766BRUZ-2-RL7's performance, it is essential to understand the application requirements. Identify the desired signal-to-noise ratio (SNR), spurious-free dynamic range (SFDR), and total harmonic distortion (THD) for your application. Then, adjust the gain, filter settings, and clock frequency accordingly. Additionally, consider the input signal amplitude, frequency, and impedance to ensure optimal performance.
  • When selecting external components for the AD7766BRUZ-2-RL7, consider the component's tolerance, temperature coefficient, and parasitic effects. For example, choose resistors with low temperature coefficients and capacitors with low equivalent series resistance (ESR) and high quality factor (Q). Ensure that the external components are compatible with the AD7766BRUZ-2-RL7's operating frequency and voltage range.
  • To troubleshoot common issues with the AD7766BRUZ-2-RL7, start by verifying the power supply voltage, clock frequency, and input signal amplitude. Check for noise sources, such as electromagnetic interference (EMI) or radio-frequency interference (RFI). Use an oscilloscope to visualize the input and output signals. Consult the AD7766BRUZ-2-RL7 datasheet and application notes for troubleshooting guides and FAQs.
  • The AD7766BRUZ-2-RL7 has a maximum junction temperature of 150°C. Ensure good thermal conductivity by using a heat sink or a thermal pad on the exposed pad of the package. Keep the device away from heat sources and ensure good airflow. Monitor the device's temperature using the internal temperature sensor or an external thermometer.
