AD7767BRUZ-1-RL7 - Analog Devices

Description: ► Oversampled successive approximation (SAR) architecture ► High performance ac and dc accuracy, low power ► 115.5 dB dynamic range, 32 kSPS (AD7767-2) ► 112.5 dB dynamic range, 64 kSPS (AD7767-1) ► 109.5 dB dynamic range, 128 kSPS (AD7767) ► −118 dB THD ► Exceptionally low power ► 8.5 mW, 32 kSPS (AD7767-2) ► 10.5 mW, 64 kSPS (AD7767-1) ► 15 mW, 128 kSPS (AD7767) ► High dc accuracy ► 24 bits, no missing codes (NMC) ► INL: ±3 ppm (typical), ±7.6 ppm (maximum) ► Low temperature drift ► Zero err

Download AD7767BRUZ-1-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

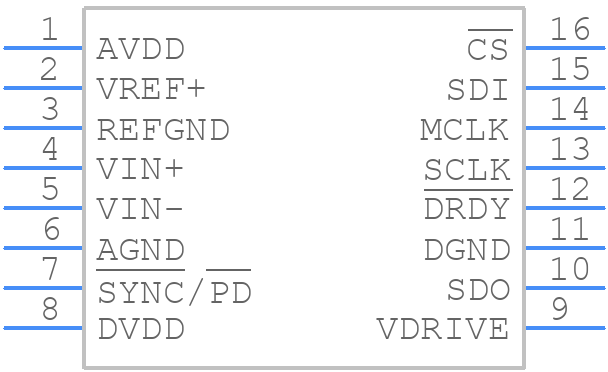

AD7767BRUZ-1-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7767BRUZ-1-RL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - (RU-16)
click to zoom
3D Models
AD7767BRUZ-1-RL7 - Analog Devices - 3D model - Small Outline Packages - (RU-16)
click to zoom

AD7767BRUZ-1-RL7 Details

  • Manufacturer Part Number:

    AD7767BRUZ-1-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    ROHS COMPLIANT, MO-153AB, TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RU-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog Input Voltage-Max:

    5 V

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.00076%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    REEL

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.64 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    1.5 mA

  • Supply Voltage-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

AD7767BRUZ-1-RL7 Frequently Asked Questions (FAQs)

  • The recommended layout and routing for the AD7767BRUZ-1-RL7 can be found in the AD7767 Evaluation Board documentation and the AD7767 Layout and Routing Guidelines document, both available on the Analog Devices website. These resources provide detailed guidance on how to optimize the PCB layout and routing for optimal performance.
  • The AD7767BRUZ-1-RL7 has an internal calibration mechanism that can be initiated through the SPI interface. The calibration process is described in the AD7767 datasheet and involves writing specific commands to the device's registers. Additionally, the AD7767 Evaluation Board software provides a calibration utility that can be used to simplify the calibration process.
  • The maximum sampling rate of the AD7767BRUZ-1-RL7 is 128 kSPS, but this can be limited by the system's clock frequency, the analog input bandwidth, and the digital filter configuration. The actual achievable sampling rate will depend on the specific application and system design.
  • The digital filter coefficients for the AD7767BRUZ-1-RL7 can be calculated using the AD7767 Filter Coefficient Calculator tool, available on the Analog Devices website. The tool allows users to select the desired filter response and calculate the corresponding coefficients, which can then be programmed into the device's registers.
  • The power consumption of the AD7767BRUZ-1-RL7 depends on the operating mode, sampling rate, and voltage supply. The typical power consumption is around 15 mW at 3.3 V and 128 kSPS, but this can vary depending on the specific application and system design. The AD7767 datasheet provides more detailed information on power consumption.
