AD7767BRUZ-2-RL7 - Analog Devices

Description: 24-Bit, 15 mW, 109 dB, 128 kSPS/64 kSPS/32 kSPS ADCs

Download AD7767BRUZ-2-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

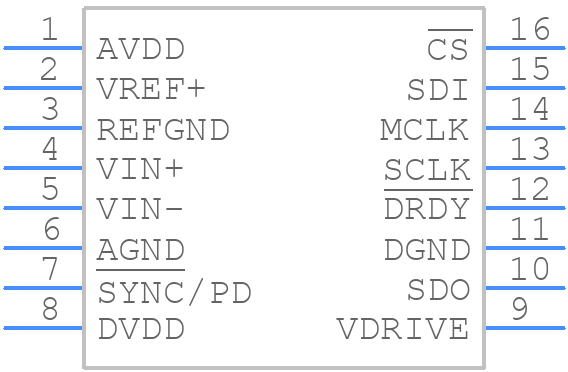

Symbol
AD7767BRUZ-2-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7767BRUZ-2-RL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16-Lead Thin Shrink Small Outline Package [TSSOP]
click to zoom
3D Models
AD7767BRUZ-2-RL7 - Analog Devices - 3D model - Small Outline Packages - 16-Lead Thin Shrink Small Outline Package [TSSOP]
click to zoom

AD7767BRUZ-2-RL7 Details

  • Manufacturer Part Number:

    AD7767BRUZ-2-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    ROHS COMPLIANT, MO-153AB, TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RU-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog Input Voltage-Max:

    5 V

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.00076%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.32 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    1.5 mA

  • Supply Voltage-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

AD7767BRUZ-2-RL7 Frequently Asked Questions (FAQs)

  • The AD7767BRUZ-2-RL7 requires careful layout and placement to minimize noise and ensure optimal performance. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it is recommended to use a 4-layer PCB with a dedicated analog ground plane and to avoid running digital signals near the analog signal paths.
  • To optimize the AD7767BRUZ-2-RL7's performance for your specific application, it is recommended to follow the guidelines provided in the datasheet and application notes. This includes selecting the appropriate gain and offset settings, optimizing the clock frequency and sampling rate, and using the correct input range and filtering. Additionally, it is recommended to consult with Analog Devices' application engineers and to use the AD7767BRUZ-2-RL7's evaluation board to test and optimize the device for your specific application.
  • The AD7767BRUZ-2-RL7 has a maximum junction temperature of 150°C and a maximum operating temperature range of -40°C to 125°C. To ensure reliable operation over temperature, it is recommended to follow the thermal management guidelines provided in the datasheet, including using a heat sink or thermal pad, minimizing thermal resistance, and ensuring good airflow around the device. Additionally, it is recommended to consult with Analog Devices' application engineers to ensure that the device is properly thermal-managed for your specific application.
  • To troubleshoot common issues with the AD7767BRUZ-2-RL7, it is recommended to follow the troubleshooting guidelines provided in the datasheet and application notes. This includes checking the device's power supply, clock frequency, and input signals, as well as verifying that the device is properly configured and calibrated. Additionally, it is recommended to use the AD7767BRUZ-2-RL7's built-in diagnostic features, such as the internal calibration and self-test modes, to help identify and troubleshoot issues.
  • The AD7767BRUZ-2-RL7 is designed to meet the radiation and EMC requirements for most industrial and commercial applications. However, it is recommended to consult with Analog Devices' application engineers to ensure that the device meets the specific radiation and EMC requirements for your application. Additionally, it is recommended to follow the guidelines provided in the datasheet and application notes for designing and testing the device for radiation and EMC compliance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7767BRUZ-2-RL7 Overview

Use the download button to access the AD7767BRUZ-2-RL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD776, or try a keyword search, such as Analog to Digital Converters
