AD7767BRUZ-RL7 - Analog Devices

Description: 24-Bit, 15 mW, 109 dB, 128 kSPS/64 kSPS/32 kSPS ADCs

Download AD7767BRUZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

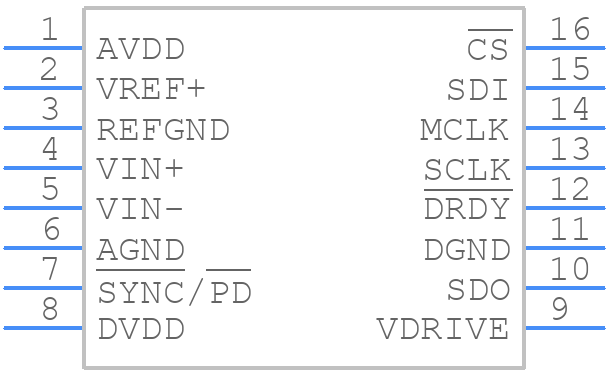

AD7767BRUZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7767BRUZ-RL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16-Lead Thin Shrink Small Outline Package
click to zoom
3D Models
AD7767BRUZ-RL7 - Analog Devices - 3D model - Small Outline Packages - 16-Lead Thin Shrink Small Outline Package
click to zoom

AD7767BRUZ-RL7 Details

  • Manufacturer Part Number:

    AD7767BRUZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    ROHS COMPLIANT, MO-153AB, TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RU-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog Input Voltage-Max:

    5 V

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.00076%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.128 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    1.5 mA

  • Supply Voltage-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

AD7767BRUZ-RL7 Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the analog and digital signals separate. Also, use a low-ESR capacitor for the AVDD and DVDD pins, and keep the decoupling capacitors close to the pins.
  • To optimize performance in a noisy environment, use a low-pass filter at the input, use a shielded cable for the analog input, and consider using a common-mode filter. Also, ensure that the analog and digital grounds are connected at a single point, and use a low-noise power supply.
  • The recommended clock frequency for the AD7767BRUZ-RL7 is between 2.5 MHz and 10 MHz. A higher clock frequency can improve the throughput, but it may also increase the power consumption and noise sensitivity. A lower clock frequency can reduce power consumption, but it may also reduce the throughput.
  • The AD7767BRUZ-RL7 has an internal calibration mechanism. To calibrate the device, apply a known input voltage, and then use the CAL pin to initiate the calibration process. The device will then adjust its internal gain and offset to ensure accurate measurements.
  • The maximum input voltage range for the AD7767BRUZ-RL7 is ±VREF. Exceeding this range can cause the device to saturate, resulting in inaccurate measurements. Ensure that the input voltage is within the specified range to ensure optimal performance.
