AD7768-1BCPZ - Analog Devices

Description: Analog to Digital Converters - DC to 204 kHz, Dynamic Signal Analysis, Precision 24-Bit ADC with Power Scaling

Download AD7768-1BCPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

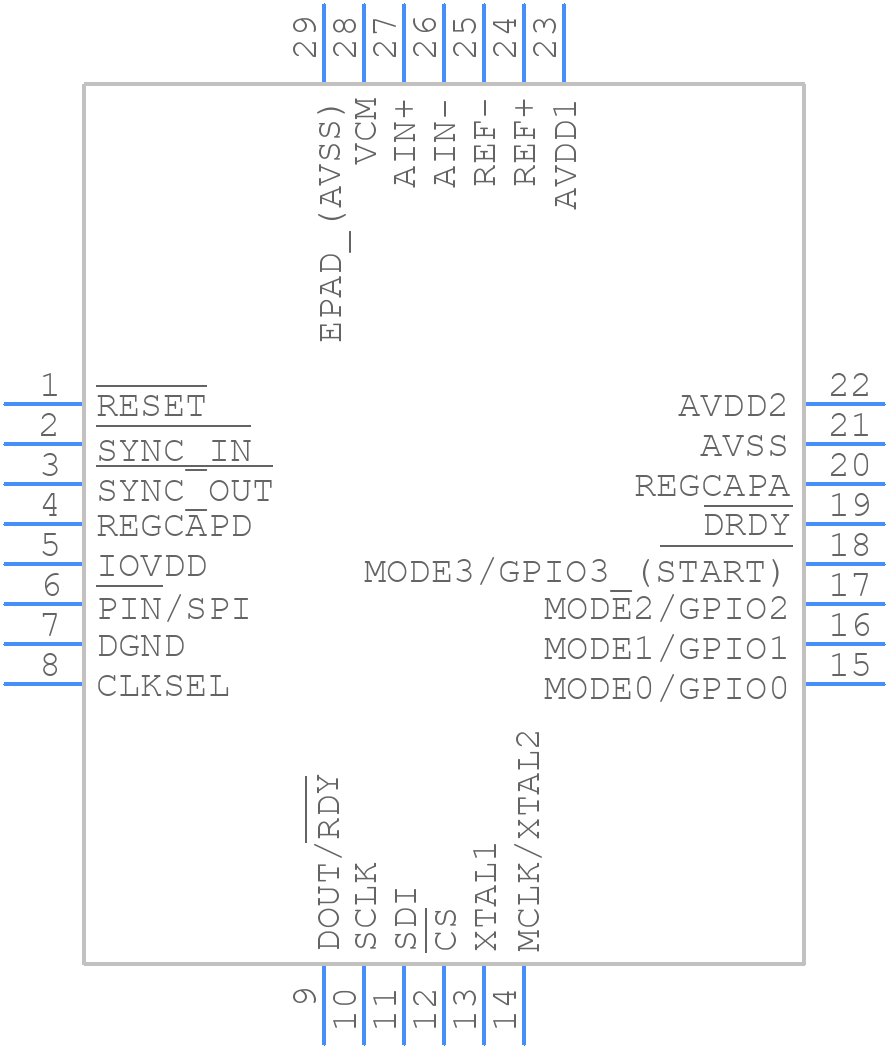

Symbol
AD7768-1BCPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7768-1BCPZ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 28 Lead Frame Chip-Scale Package
click to zoom
3D Models
AD7768-1BCPZ - Analog Devices - 3D model - Quad Flat No-Lead - 28 Lead Frame Chip-Scale Package
click to zoom

AD7768-1BCPZ Details

  • Manufacturer Part Number:

    AD7768-1BCPZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    CP-28-12

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2018-05-04

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog Input Voltage-Max:

    5.5 V

  • Analog Input Voltage-Min:

    2 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    R-XQCC-N28

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.0007%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    1

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC28,.16X.2,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    1.024 MHz

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    5.65 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

AD7768-1BCPZ Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate analog ground plane is recommended. Keep analog and digital signals separate, and use shielded cables for analog inputs. Refer to the AD7768-1BCPZ evaluation board layout as a reference.
  • The AFE can be optimized by selecting the appropriate gain, filter settings, and clock frequency based on the input signal characteristics. Consult the AD7768-1BCPZ datasheet and application notes for guidance on optimizing the AFE for your specific application.
  • Power up the AVDD and DVDD supplies simultaneously, followed by the AVSS and DVSS supplies. Ensure that the analog and digital power supplies are separated and decoupled properly.
  • Use an oscilloscope to verify the input signals and analog output. Check the PCB layout and routing for noise susceptibility. Consult the AD7768-1BCPZ datasheet and application notes for troubleshooting guidelines and common pitfalls to avoid.
  • Perform a full-scale calibration by applying a known input signal and adjusting the offset and gain registers accordingly. Refer to the AD7768-1BCPZ datasheet and application notes for a detailed calibration procedure.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7768-1BCPZ Overview

Use the download button to access the AD7768-1BCPZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD776, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
