AD7780BRUZ-REEL - Analog Devices

Description: 24-Bit, Pin-Programmable, Ultralow Power Sigma-Delta ADC

Download AD7780BRUZ-REEL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

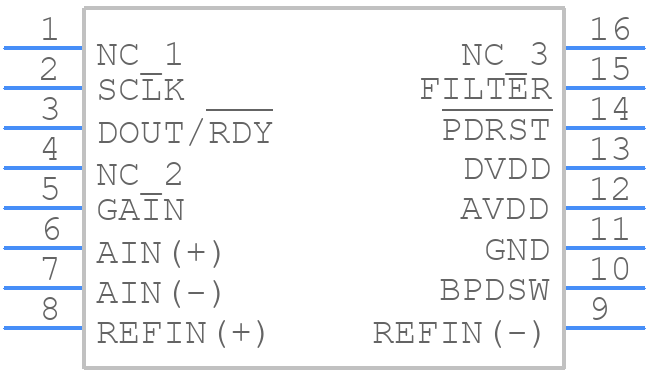

AD7780BRUZ-REEL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7780BRUZ-REEL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-16 (TSSOP)
click to zoom
3D Models
AD7780BRUZ-REEL - Analog Devices - 3D model - Small Outline Packages - RU-16 (TSSOP)
click to zoom

AD7780BRUZ-REEL Details

  • Manufacturer Part Number:

    AD7780BRUZ-REEL

  • Source Url Status Check Date:

    2013-05-01 14:56:20.364

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    ROHS COMPLIANT, PLASTIC, MO-153AB, TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RU-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    5 V

  • Analog Input Voltage-Min:

    -5 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.0006%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    OFFSET BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    0.5 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

AD7780BRUZ-REEL Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the AD7780BRUZ-REEL can be found in the AD7780 Evaluation Board documentation, which provides a detailed layout guide and PCB design files. Additionally, Analog Devices provides a layout guide in the AD7780 datasheet, which highlights the importance of keeping the analog and digital grounds separate, and providing a solid ground plane.
  • The AD7780BRUZ-REEL has an internal calibration mechanism that can be initiated through the CAL pin. The calibration process involves shorting the CAL pin to the VCC pin, which triggers the internal calibration sequence. The device also has an offset calibration register that can be used to trim the offset error. For more information, refer to the AD7780 datasheet and the calibration section.
  • The maximum sampling rate of the AD7780BRUZ-REEL is 30 kSPS (kilo-samples per second). However, the actual sampling rate may be limited by the system clock frequency, the conversion mode, and the filter settings. Refer to the AD7780 datasheet for more information on the sampling rate and the trade-offs with other parameters.
  • Yes, the AD7780BRUZ-REEL can be used with an external reference voltage. The device has a REFIN pin that can be connected to an external reference voltage source. The external reference voltage should be within the specified range of 2.5 V to 5.5 V. Using an external reference voltage can improve the accuracy and stability of the ADC conversion results.
  • The AD7780BRUZ-REEL can be interfaced with a microcontroller through a serial interface, such as SPI or I2C. The device has a dedicated pin for the serial clock (SCLK), serial data output (SDO), and serial data input (SDI). The microcontroller can control the AD7780BRUZ-REEL by sending commands and reading data through the serial interface. Refer to the AD7780 datasheet and the microcontroller's documentation for more information on the interface protocol.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

AD7780BRUZ-REEL Overview

Use the download button to access the AD7780BRUZ-REEL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD778, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
