AD7780BRUZ - Analog Devices

Description: Analog to Digital Converters - ADC 1CHANNEL L/POWER 24-BIT SD GAIN 128 IC

Download AD7780BRUZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

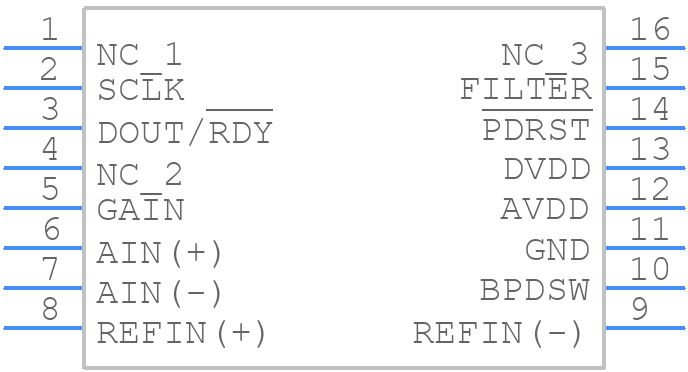

AD7780BRUZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7780BRUZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-16 (TSSOP)
click to zoom
3D Models
AD7780BRUZ - Analog Devices - 3D model - Small Outline Packages - RU-16 (TSSOP)
click to zoom

AD7780BRUZ Details

  • Manufacturer Part Number:

    AD7780BRUZ

  • Source Url Status Check Date:

    2013-05-01 14:56:20.363

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    ROHS COMPLIANT, PLASTIC, MO-153AB, TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RU-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    5 V

  • Analog Input Voltage-Min:

    -5 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.0006%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    OFFSET BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    0.5 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

AD7780BRUZ Frequently Asked Questions (FAQs)

  • The AD7780BRUZ is a sensitive analog device, and proper layout and placement are crucial for optimal performance. It is recommended to keep the analog and digital grounds separate, and to place the device close to the analog signal sources. A solid ground plane and proper decoupling are also essential.
  • To optimize the AD7780BRUZ for low noise performance, ensure that the device is operated within its recommended operating conditions, and that the analog input signals are properly filtered and buffered. Additionally, minimize digital noise coupling by keeping digital signals away from analog signals, and use a low-noise voltage reference.
  • The maximum sampling rate of the AD7780BRUZ is 15 kSPS (kilosamples per second). However, the actual sampling rate may be limited by the system's clock frequency and the device's settling time.
  • Yes, the AD7780BRUZ can be used with an external voltage reference. The device has a dedicated VREF pin that can be connected to an external voltage reference. However, ensure that the external reference is stable and has a low noise output.
  • The AD7780BRUZ has a built-in calibration feature that allows for offset and gain calibration. The device can be calibrated using the CAL pin, which is used to select the calibration mode. The calibration process involves applying a known input voltage and adjusting the device's internal registers to achieve the desired accuracy.
